Emission Control System: Canister: Components

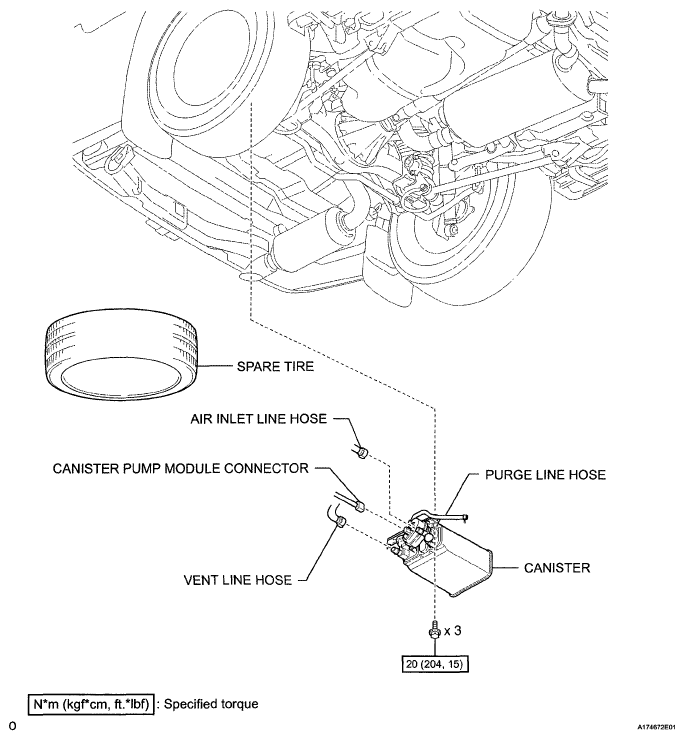

Fig 1: Canister Replacement Components With Torque Specifications
G05637966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
