Intake Manifold: Components

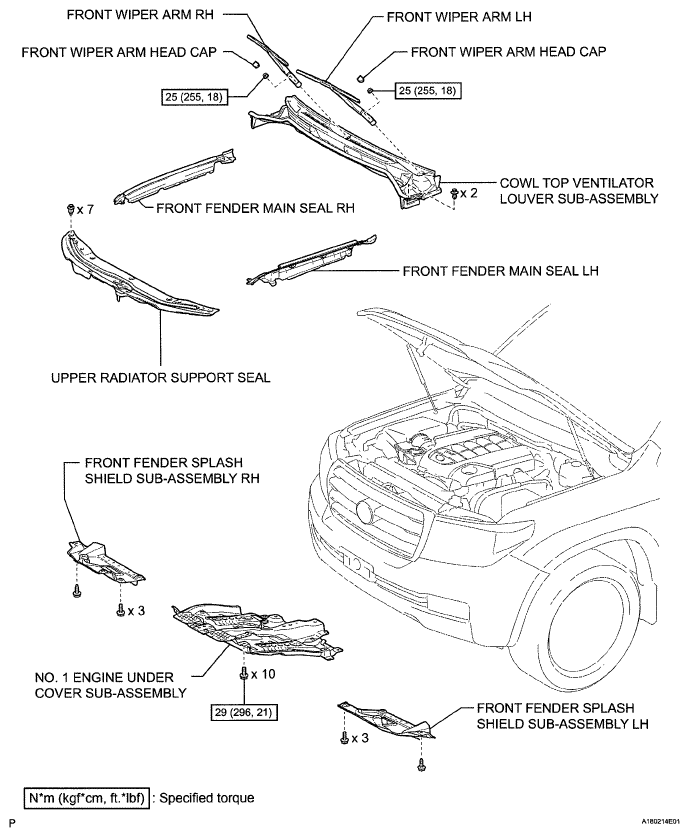

Fig 1: Identifying Intake Manifold Replacement Components With Torque Specifications (1 Of 5)
G05638001Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

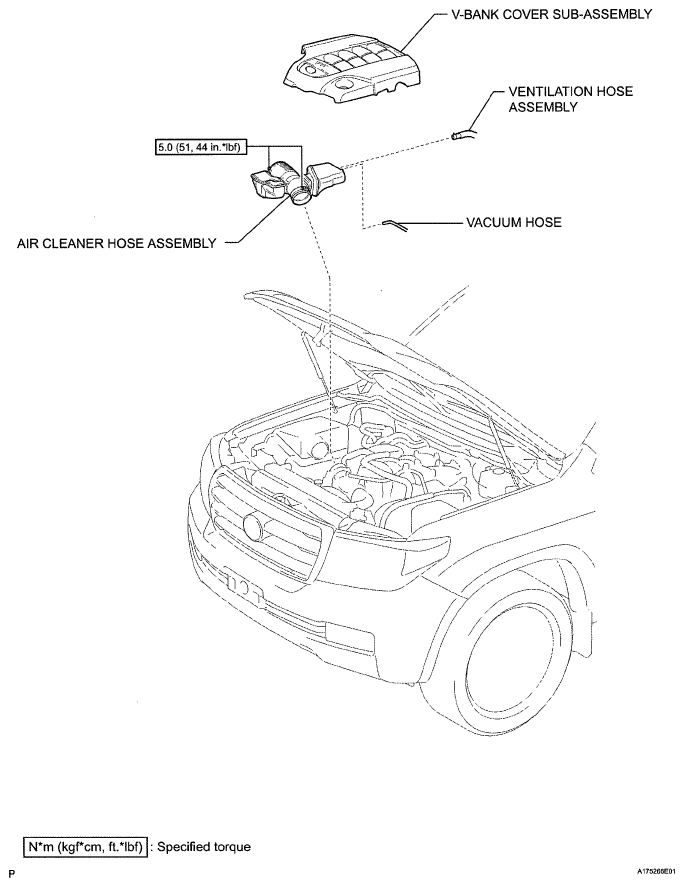

Fig 2: Identifying Intake Manifold Replacement Components With Torque Specifications (2 Of 5)
G05637919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

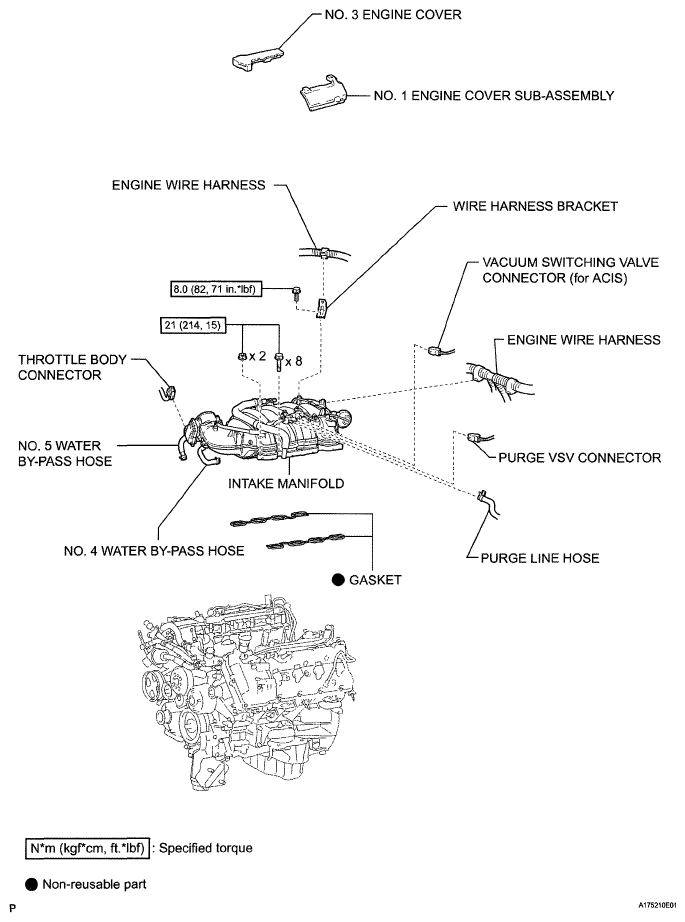

Fig 3: Identifying Intake Manifold Replacement Components With Torque Specifications (3 Of 5)
G05637922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Identifying Intake Manifold Replacement Components With Torque Specifications (4 Of 5)
G05638004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

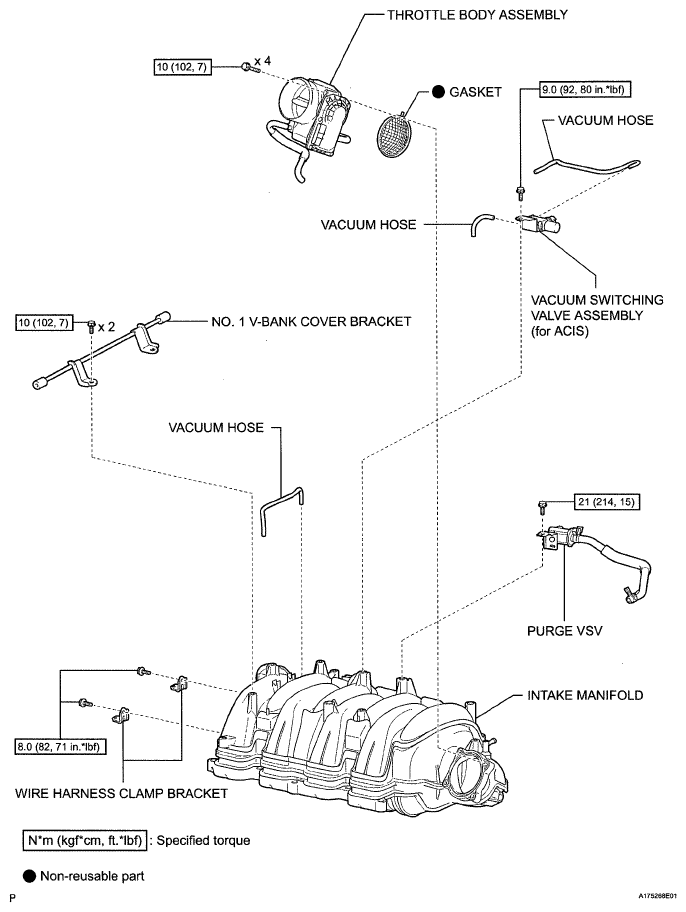

Fig 5: Identifying Intake Manifold Replacement Components With Torque Specifications (5 Of 5)
G05638005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
