Parts Location

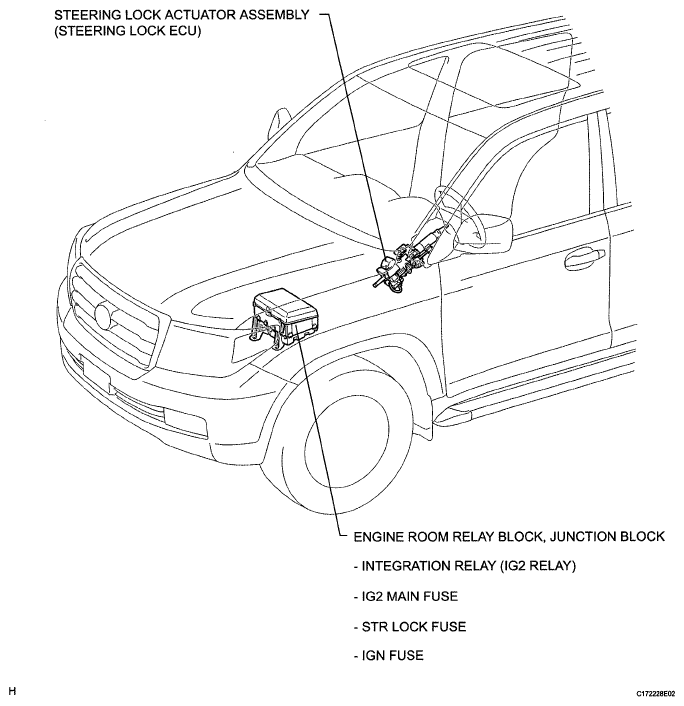

Fig 1: Identifying Steering Lock System Parts Location (1 Of 2)
G05630042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

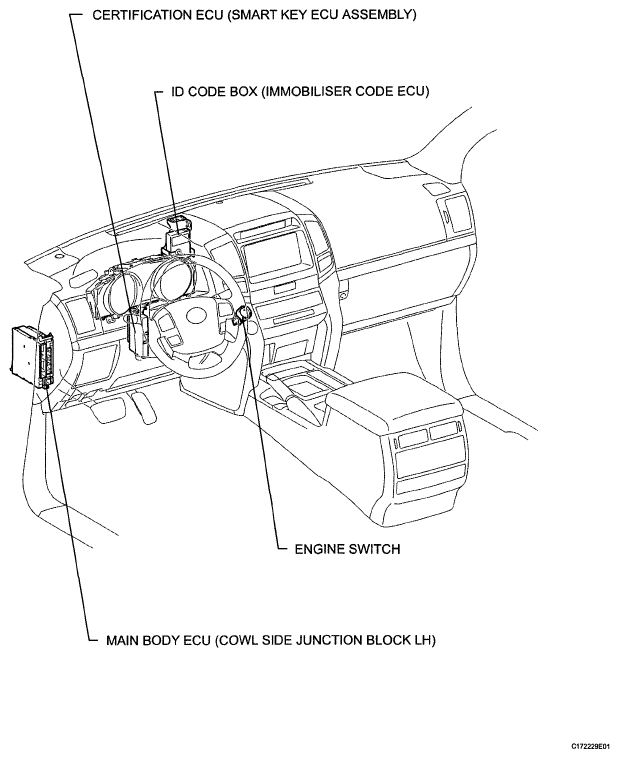

Fig 2: Identifying Steering Lock System Parts Location (2 Of 2)
G05630043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
