Inspection Procedure

HINT:

When the engine switch is off, the main body ECU may occasionally go into a non-active state called sleep mode. Therefore, before proceeding with the inspection, it is necessary to perform the following steps to wake up the ECU:

With the engine switch off, open the driver door. Then (with the engine switch still off) open and close any door several times at 1.5 second intervals.

1. INSPECT STEERING LOCK ECU
   1. Measure the voltage according to the value (s) in the table below.

      Standard Voltage

      VOLTAGE SPECIFICATION



      Tester Connection	Condition (Steering Lock Position)	Specified Condition
      E26-4 (SLP1) - E26-2 (SGND)	Locked	11 to 14 V
      E26-4 (SLP1) - E26-2 (SGND)	Unlocked	Below 1 V

   NG: Go to step 2

   Fig 1: Identifying E26 Steering Lock ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: Go to next step.

   GO TO SMART KEY SYSTEM (START FUNCTION) (HOW TO PROCEED WITH TROUBLESHOOTING)  (See HOW TO PROCEED WITH TROUBLESHOOTING )

2. CHECK HARNESS AND CONNECTOR (STEERING LOCK ECU - MAIN BODY ECU)

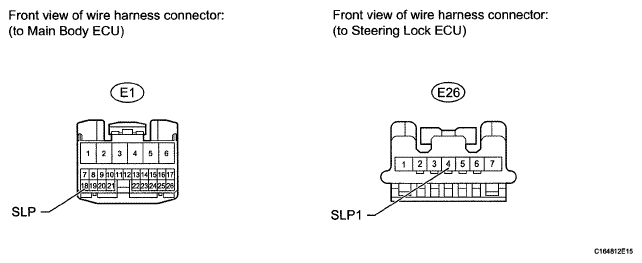

   Fig 2: Identifying E26 Steering Lock ECU Connector And E1 Main Body ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Disconnect the E26 steering lock ECU connector.
   2. Disconnect the E1 main body ECU connector.
   3. Measure the resistance according to the value (s) in the table below.

      Standard Resistance

      RESISTANCE SPECIFICATION



      Tester Connection	Condition	Specified Condition
      E26-4 (SLP1) - E1-18 (SLP)	Always	Blow 1 Ω
      E26-4 (SLP1) or E1-18 (SLP) - Body ground	Always	10 kΩ or higher

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE STEERING LOCK ACTUATOR (STEERING LOCK ECU)  (See REMOVAL  )
