Center Differential Lock Switch: Components

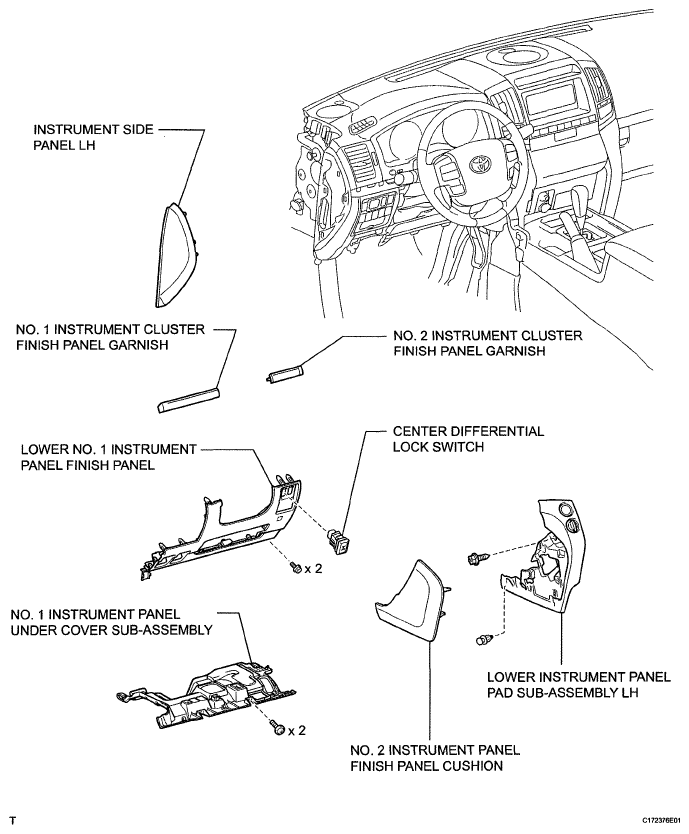

Fig 1: Center Differential Lock Switch Replacement Components With Torque Specifications
G05629733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
