Installation

CRUISE CONTROL: CLUTCH SWITCH: INSTALLATION

INSTALLATION

1. INSTALL CLUTCH SWITCH (CRUISE CONTROL CANCEL SWITCH ASSEMBLY)

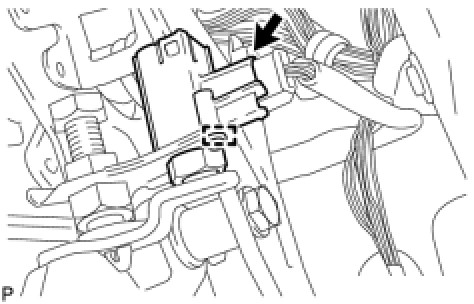

(a) Temporarily install the clutch switch (cruise control cancel switch assembly) with the nut.
(b) Engage the pin and tighten the nut.
Torque: 16 Nm (160 kgf-cm, 12 ft-lbf)
(c) Connect the connector.
