Installation

HEATING / AIR CONDITIONING: AIR CONDITIONING PRESSURE SENSOR: INSTALLATION

INSTALLATION

1. INSTALL AIR CONDITIONING PRESSURE SENSOR
(a) Sufficiently apply compressor oil to a new air conditioning pressure sensor.
Compressor oil:
ND-OIL 8 or equivalent

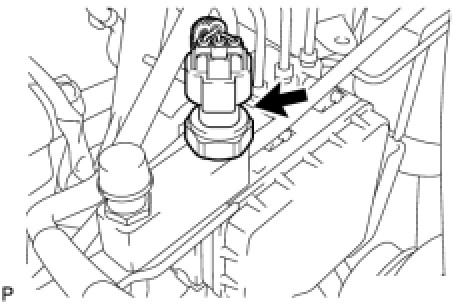

(b) Install the new air conditioning pressure sensor.
Torque: 11 Nm (110 kgf-cm, 8 ft-lbf)
(c) Connect the connector.
