Oil Pump, Engine

OIL PUMP ASSEMBLY

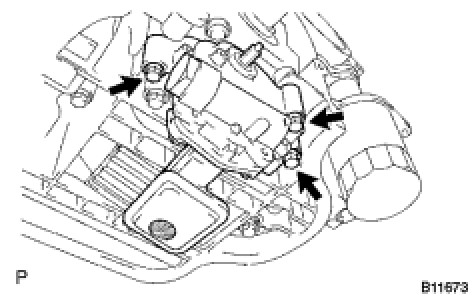

Install a new gasket and the oil pump with the 3 bolts.
Torque 19 Nm (194 kgf-cm, 14 ft-lbf)
