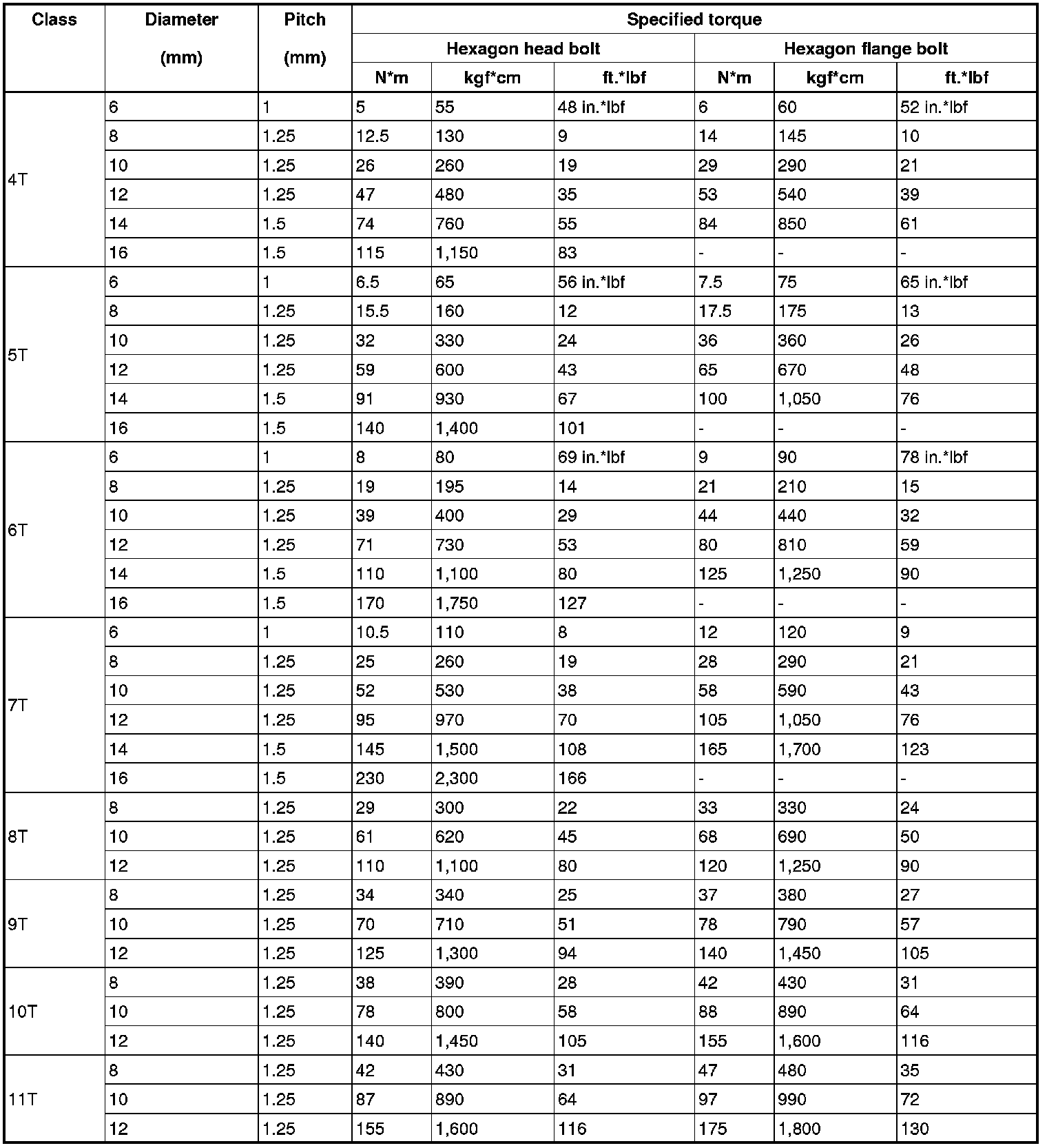

Standard Bolt - Specified Torque For Standard Bolts








SPECIFICATIONS: STANDARD BOLT: SPECIFIED TORQUE FOR STANDARD BOLTS

SPECIFIED TORQUE FOR STANDARD BOLTS
