Amplifier Antenna: Components

Fig 1: Identifying Amplifier Antenna Components (1 Of 2)
G06035814Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

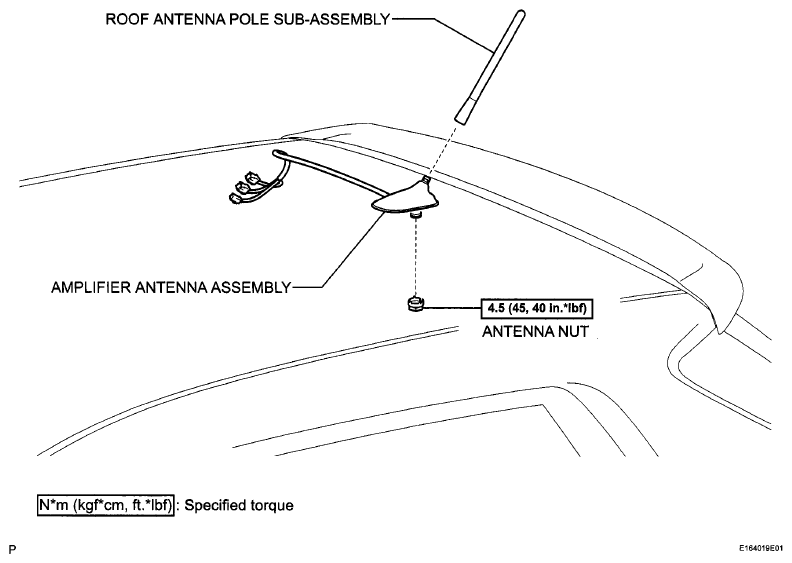

Fig 2: Amplifier Antenna Replacement Components With Torque Specifications (2 Of 2)
G06035815Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
