Wiper Switch: Components

Fig 1: Wiper Switch Replacement Components With Torque Specifications (1 Of 4)
G06042951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

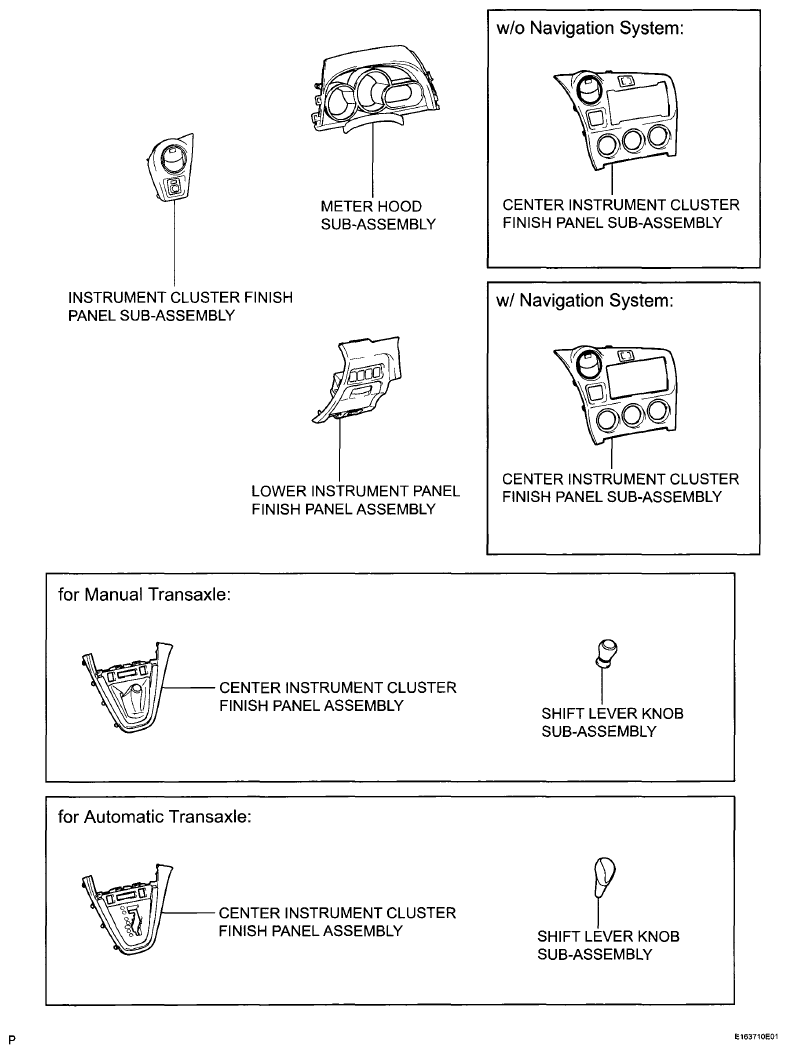

Fig 2: Identifying Wiper Switch Components (2 Of 4)
G06038616Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

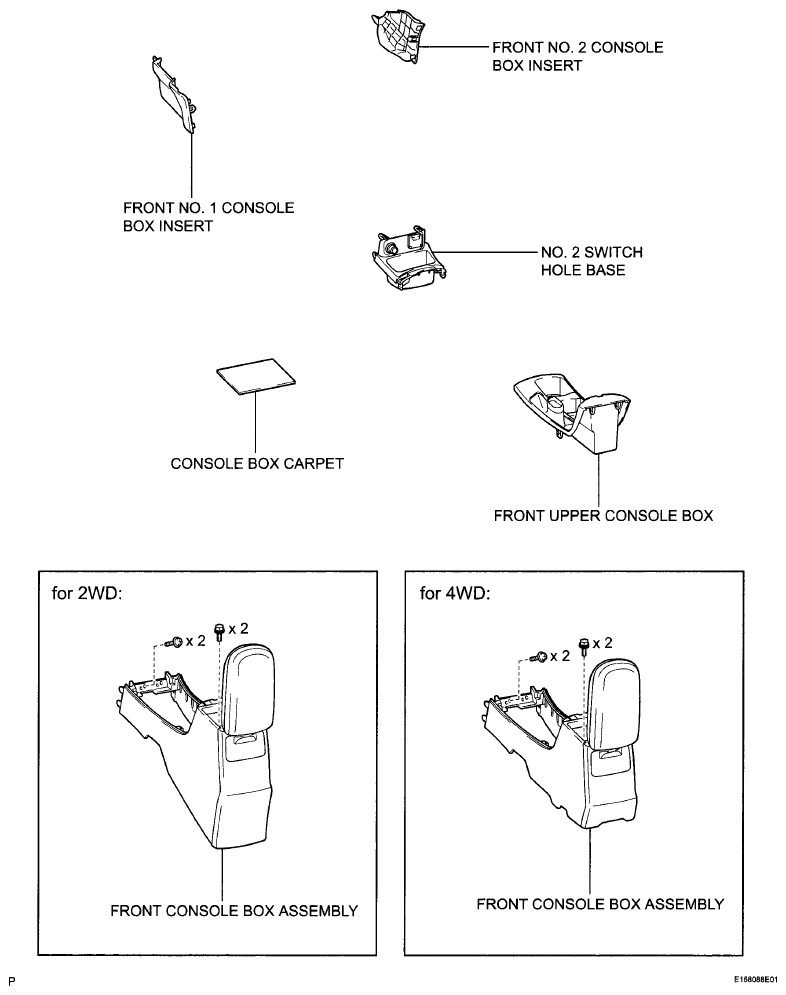

Fig 3: Identifying Wiper Switch Components (3 Of 4)
G06038617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

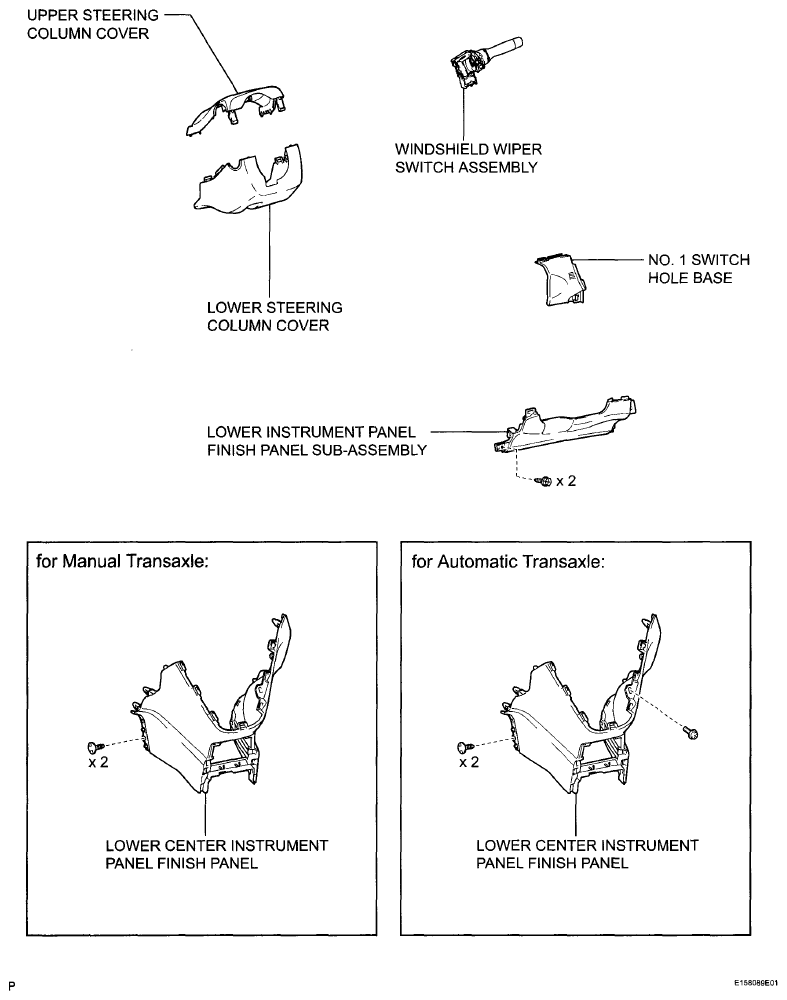

Fig 4: Identifying Wiper Switch Components (4 Of 4)
G06038618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
