Steering Knuckle: Components

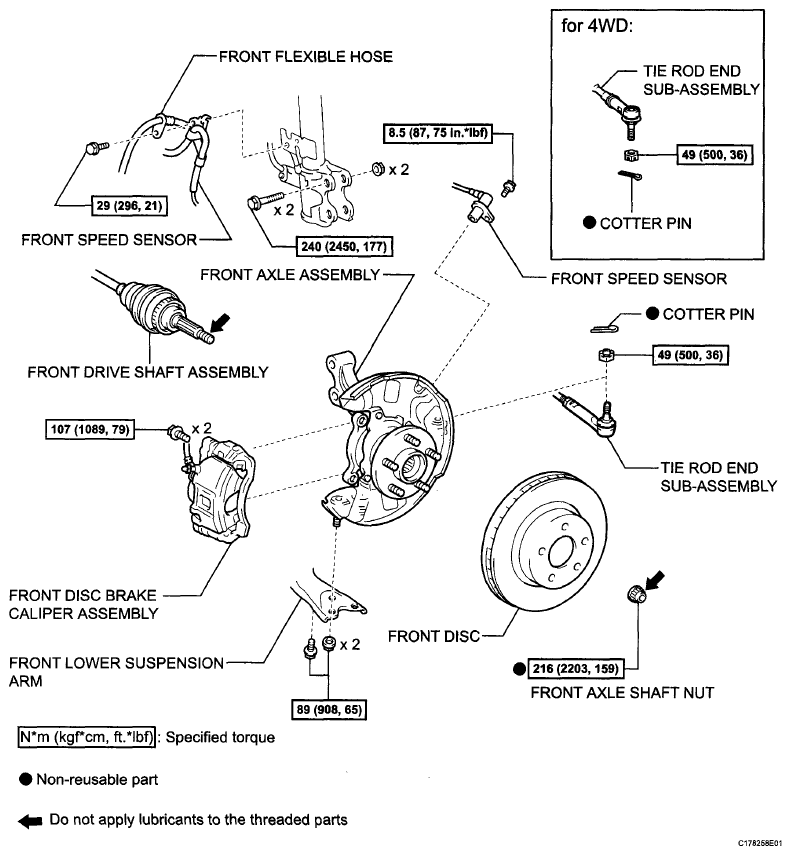

Fig 1: Front Drive Shaft And Front Disc Brake Replacement Components With Torque Specifications
G06034286Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

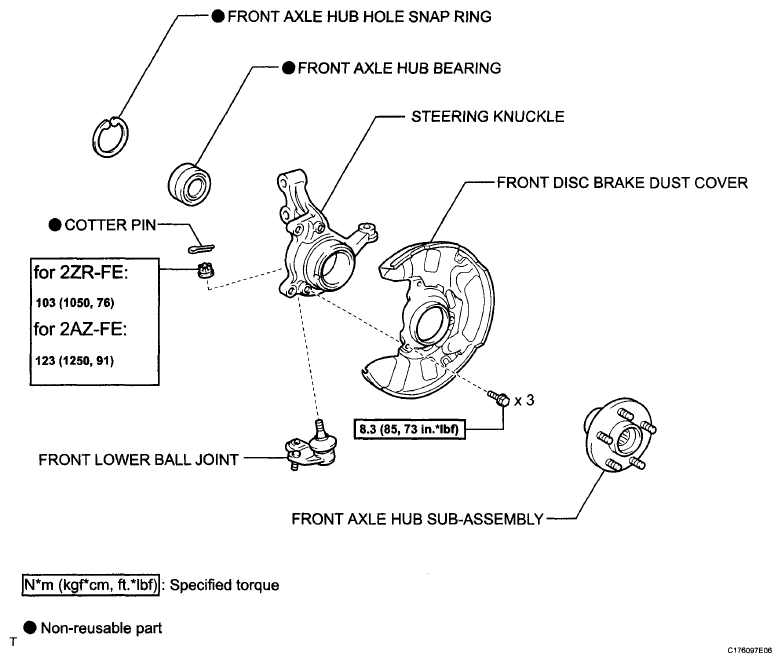

Fig 2: Steering Knuckle And Related Replacement Components With Torque Specifications
G06034287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
