Charging System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

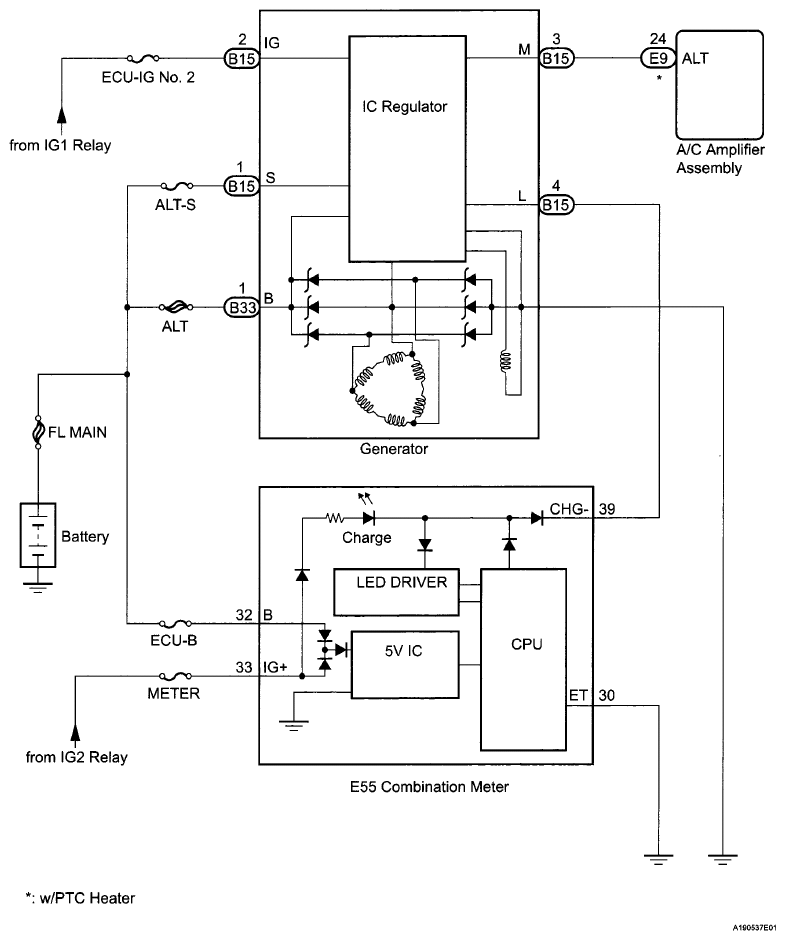

Fig 1: Charging System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
