On-Vehicle Inspection

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT INTAKE SYSTEM
    1. Check that there are no vacuum leaks at the points shown in the illustration.

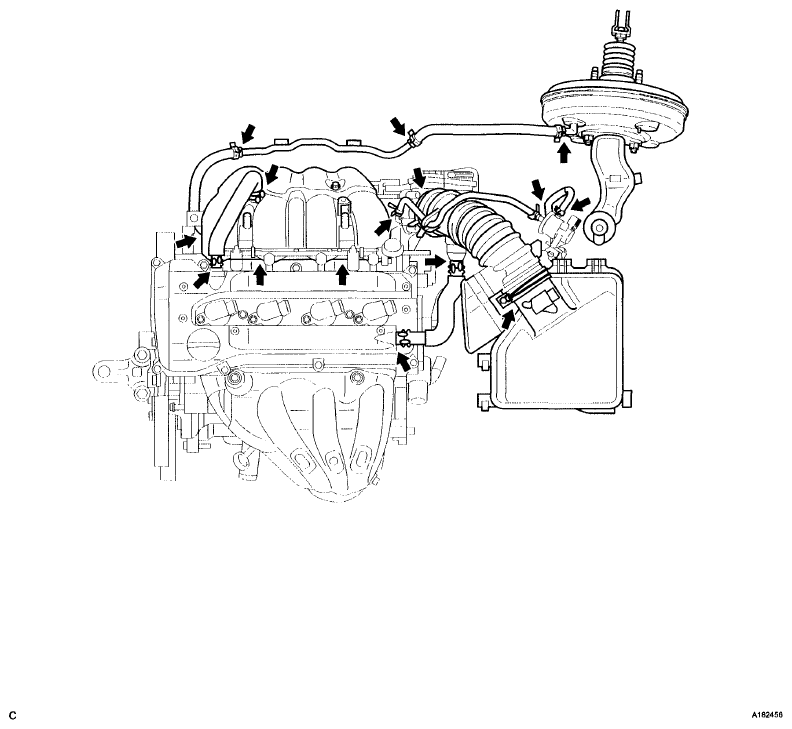

      Fig 1: Identifying Intake System Vacuum Leaks Points
      G06009185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
