Front Strut Bar: Installation

TEMPORARILY TIGHTEN TOWER BAR BRACKET SUB-ASSEMBLY LH
1. Temporarily tighten the tower bar bracket sub-assembly LH with the 3 nuts.

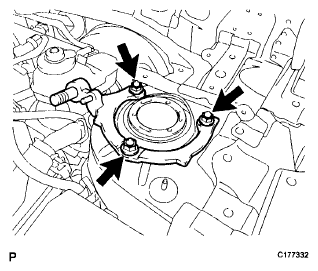

  Fig 1: Locating Tower Bar Bracket Sub-Assembly LH Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEMPORARILY TIGHTEN TOWER BAR BRACKET SUB-ASSEMBLY RH
1. Temporarily tighten the tower bar bracket sub-assembly RH with the 3 nuts.

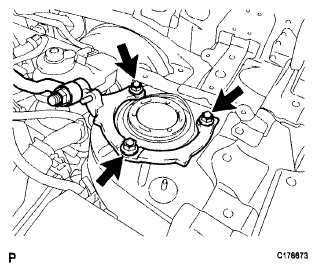

  Fig 2: Locating Tower Bar Bracket Sub-Assembly RH Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TEMPORARILY TIGHTEN SUSPENSION TOWER DAMPER ASSEMBLY
1. Temporarily tighten the suspension tower damper assembly with the 2 nuts.

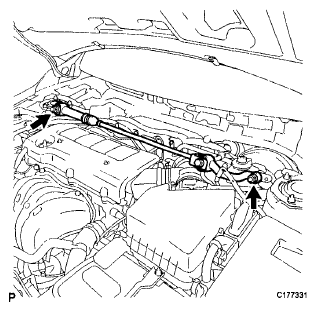

  Fig 3: Locating Suspension Tower Damper Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN TOWER BAR BRACKET SUB-ASSEMBLY LH
1. Fully tighten the 3 nuts.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

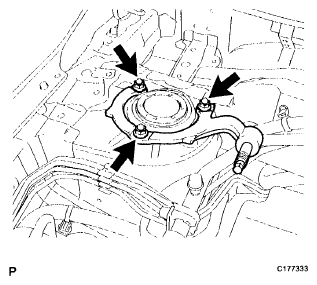

  Fig 4: Locating Tower Bar Bracket LH Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN TOWER BAR BRACKET SUB-ASSEMBLY RH
1. Fully tighten the 3 nuts.
  Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

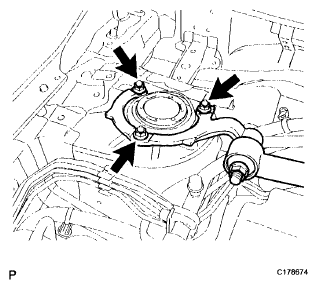

  Fig 5: Locating Tower Bar Bracket RH Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FULLY TIGHTEN SUSPENSION TOWER DAMPER ASSEMBLY
1. Fully tighten the 2 nuts.
  Torque: 52 N*m (530 kgf*cm, 38 ft.*lbf)
INSTALL OUTER COWL TOP PANEL (See INSTALLATION )
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER LH (See INSTALLATION )
INSTALL COWL TOP VENTILATOR LOUVER RH (See INSTALLATION )
INSTALL HOOD TO COWL TOP SEAL (See INSTALLATION )

Fig 6: Locating Suspension Tower Damper Assembly Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (See INSTALLATION )
INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH (See INSTALLATION )
INSTALL FRONT WIPER ARM HEAD CAP (See INSTALLATION )
