System Diagram

WARNING: This page is about a different variant/trim than selected.

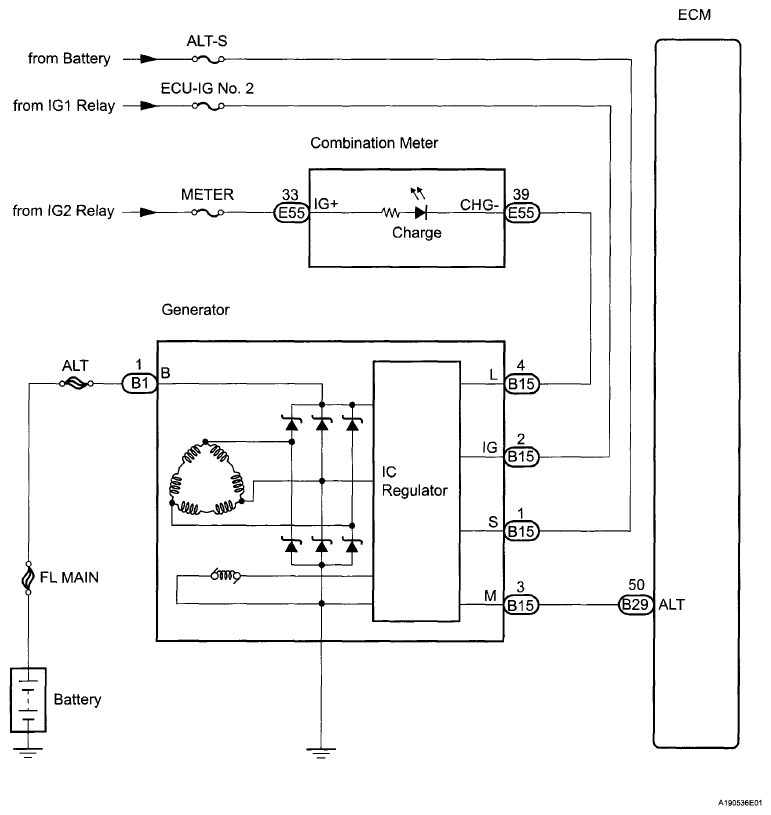

Fig 1: Charging System Diagram
G06036005Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
