Center Airbag Sensor Assembly: Components

Fig 1: Identifying Center Airbag Sensor Assembly Components (1 Of 2)
G06037063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

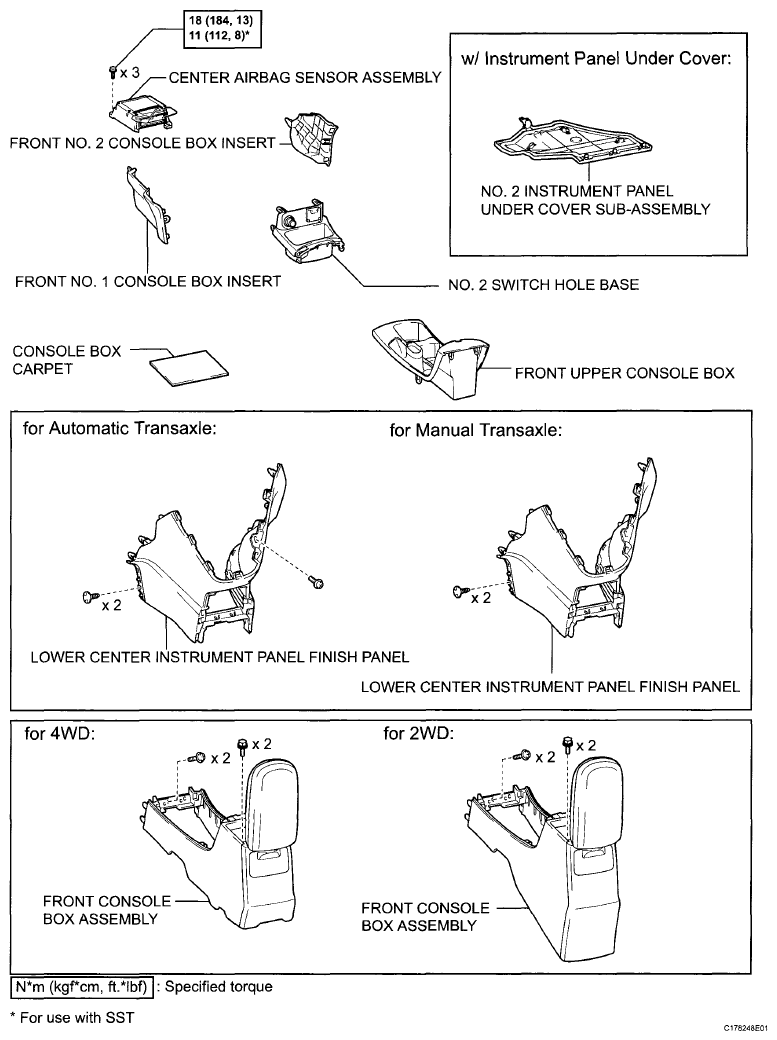

Fig 2: Center Airbag Sensor Assembly Replacement Components With Torque Specifications (2 Of 2)
G06037064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
