Front Airbag Sensor: Components

Fig 1: Identifying Front Airbag Sensor Components (1 Of 2)
G06037069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

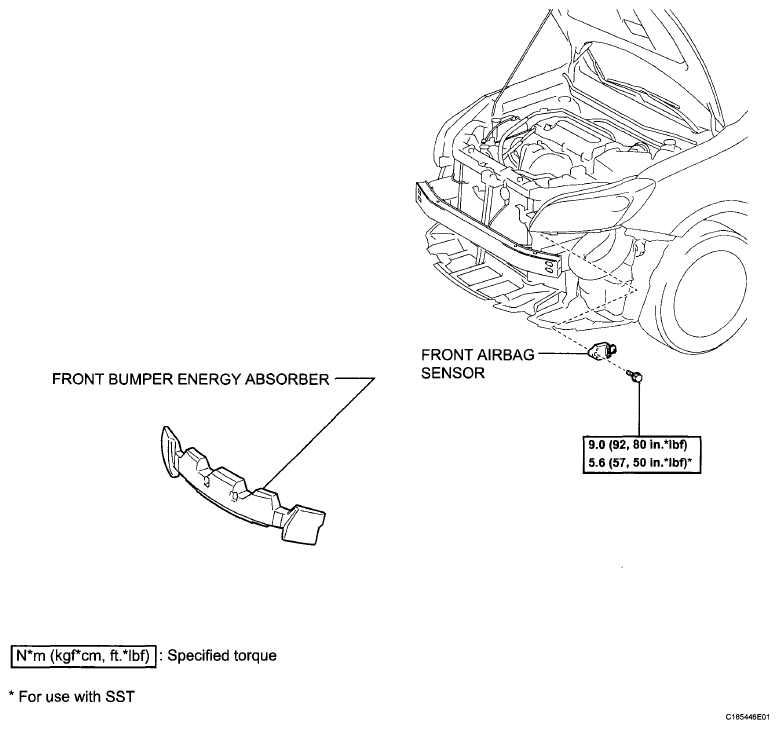

Fig 2: Front Airbag Sensor Replacement Components With Torque Specifications (2 Of 2)
G06037070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
