Emission Control Systems: Locations

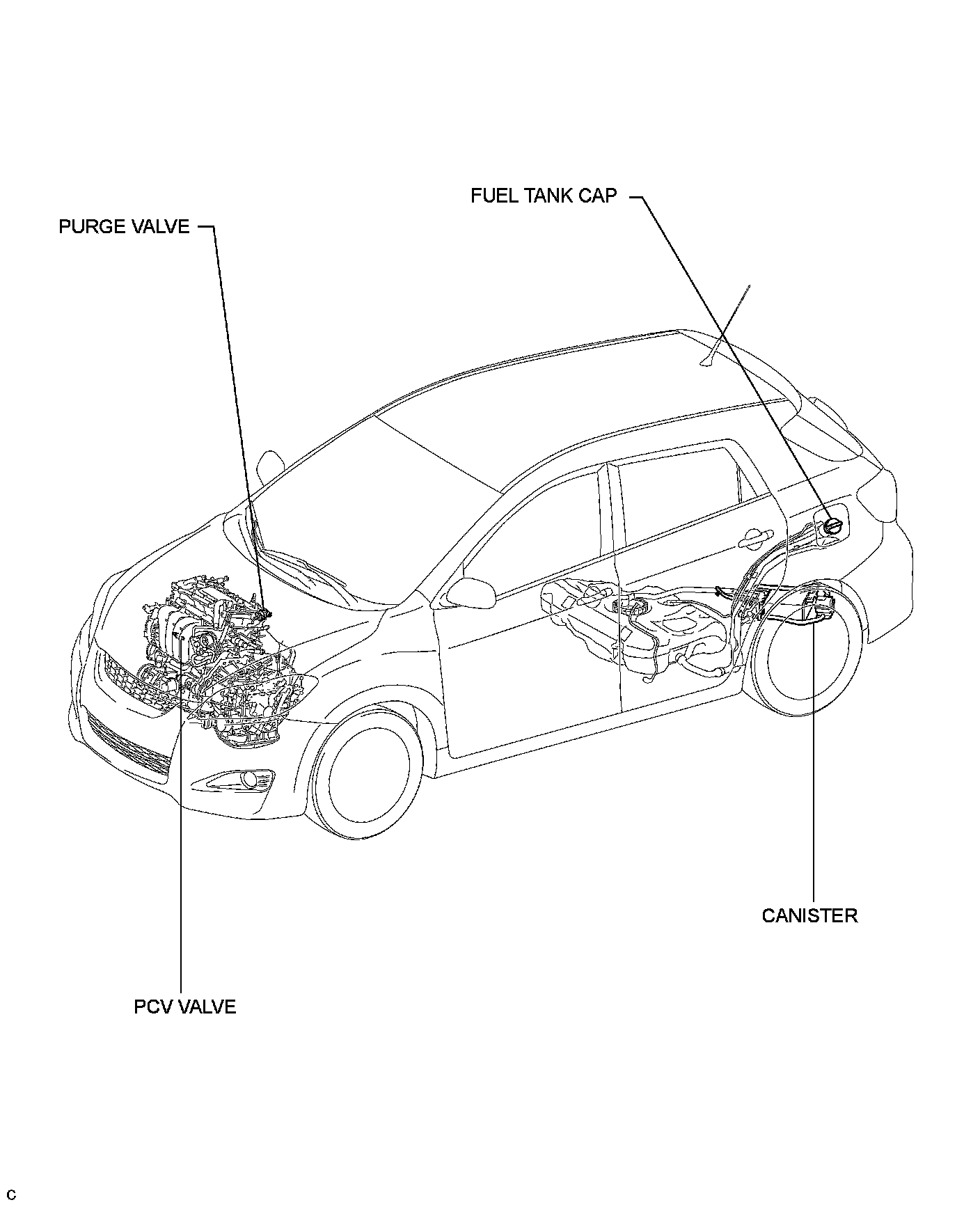

2ZR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: PARTS LOCATION

PARTS LOCATION

ILLUSTRATION
