Transmission Pan

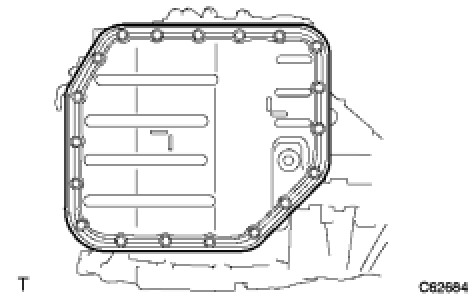

AUTOMATIC TRANSAXLE OIL PAN





Install the oil pan with the 19 bolts.
Torque 7.8 Nm (80 kgf-cm, 69 in-lbf)
