Back Door Lock: Components

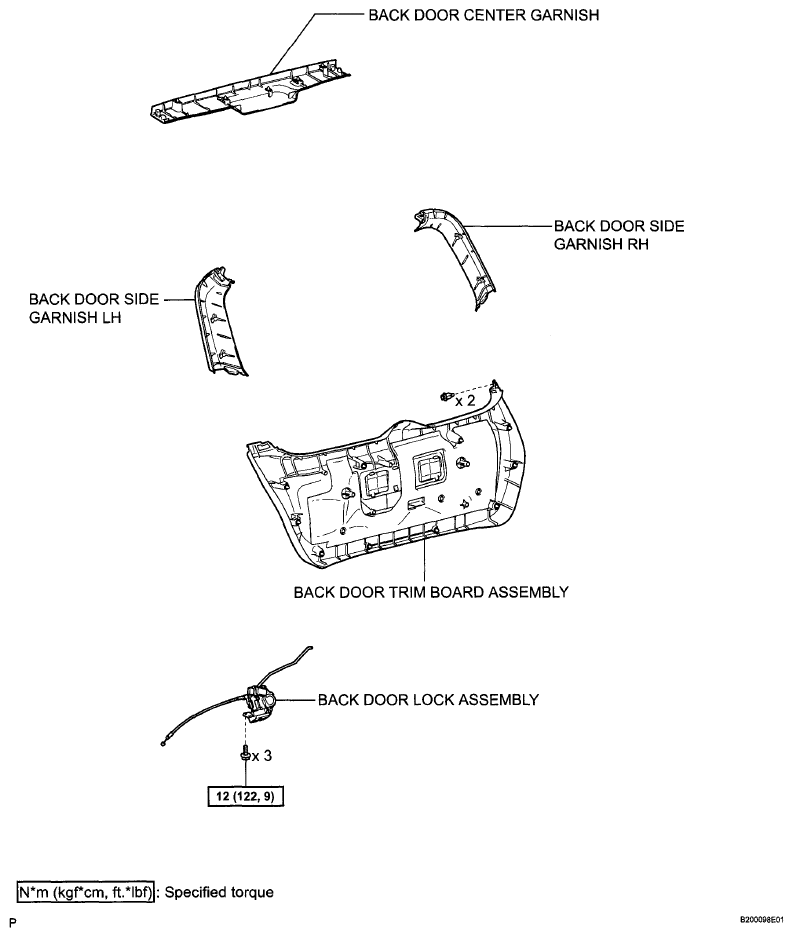

Fig 1: Back Door Lock Replacement Components With Torque Specifications
G06036430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
