Door Locks
>>
Door Lock
>>
Wireless Door Lock Control System
>>
System Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
System Diagram

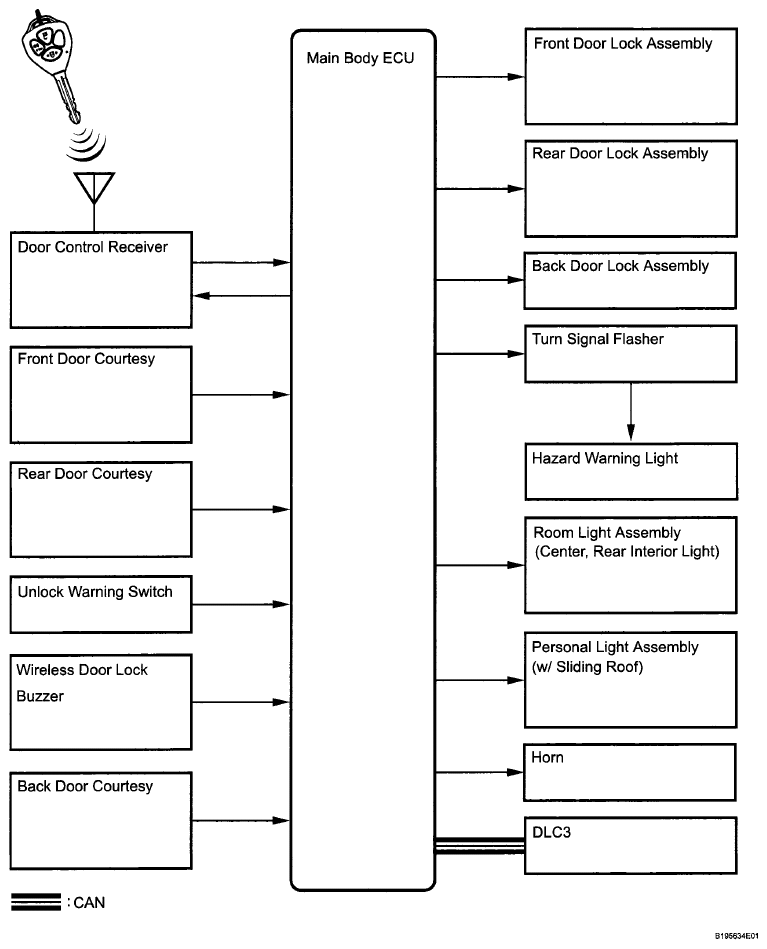

Fig 1: Wireless Door Lock Control System Diagram
