Oil Pressure Switch: Components

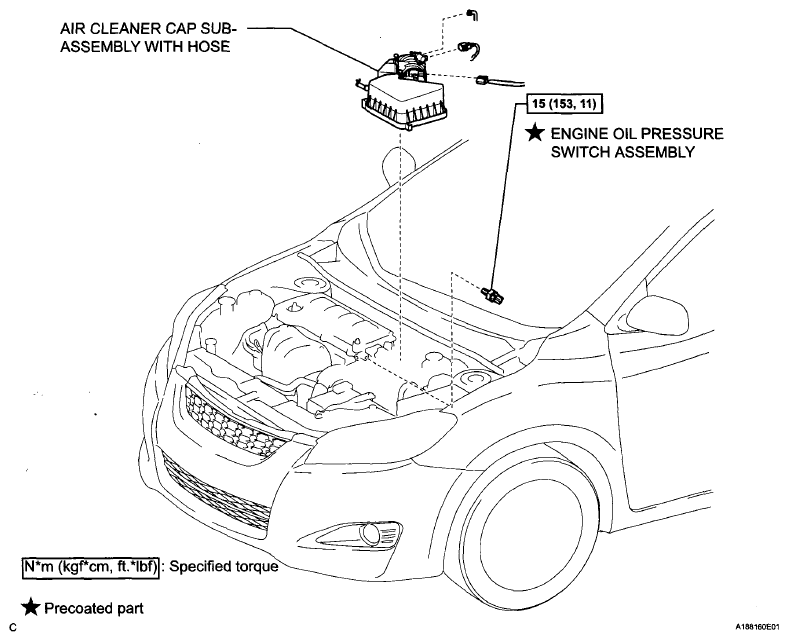

Fig 1: Oil Pressure Switch Replacement Components With Torque Specifications
G06042785Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
