Shift Lever: Components

Fig 1: Shift Lever Replacement Components With Torque Specifications (1 Of 3)
G06043197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

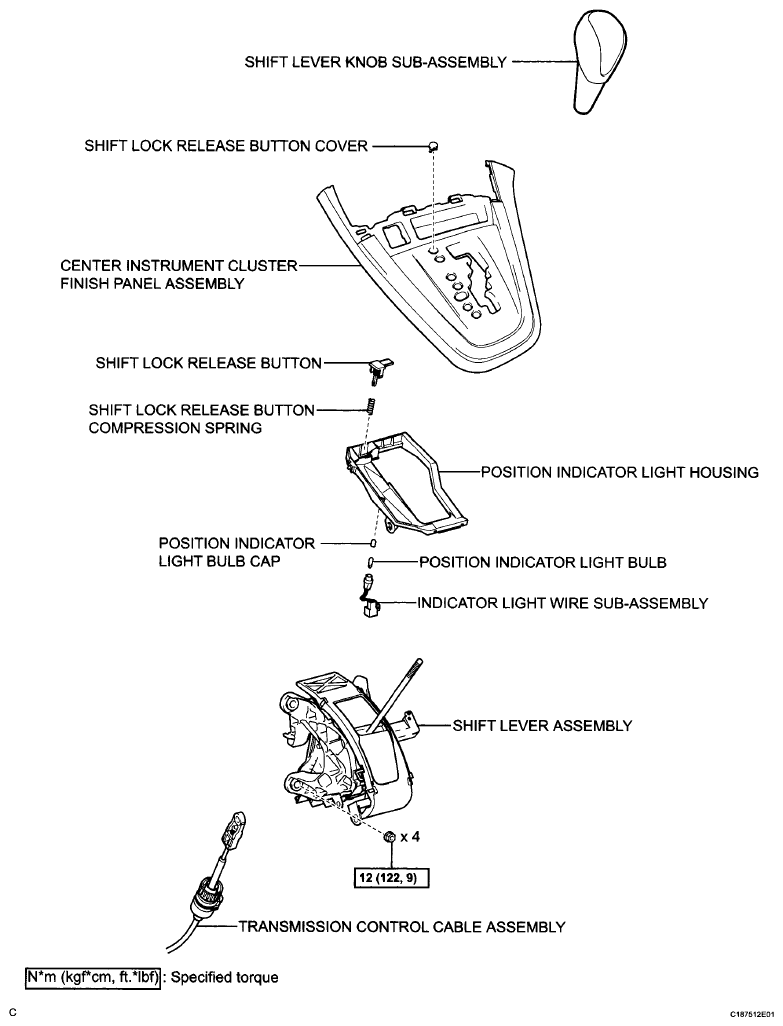

Fig 2: Shift Lever Replacement Components With Torque Specifications (2 Of 3)
G06043198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

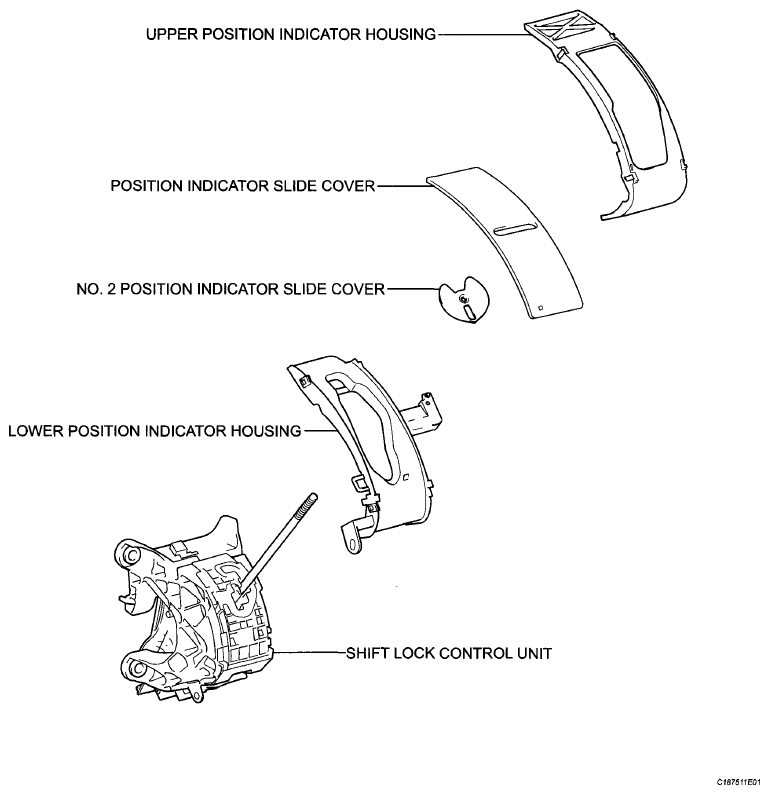

Fig 3: Shift Lever Replacement Components With Torque Specifications (3 Of 3)
G06043199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
