Speed Sensor: Components

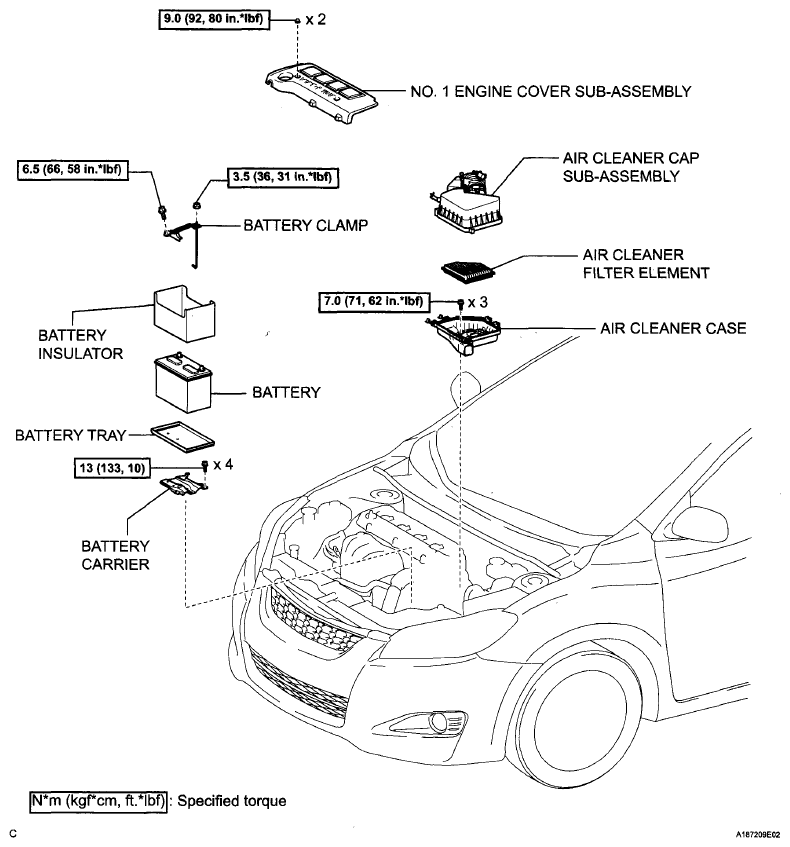

Fig 1: Speed Sensor Replacement Components With Torque Specifications (1 Of 2)
G06043130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

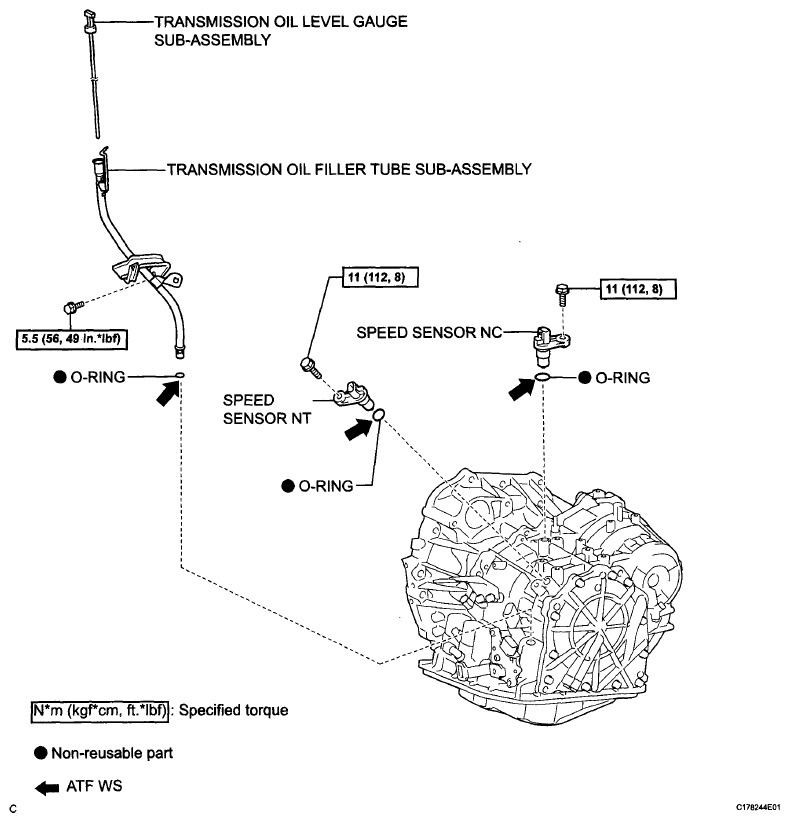

Fig 2: Speed Sensor Replacement Components With Torque Specifications (2 Of 2)
G06043131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
