Valve Body Assembly: Components

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 3)
G06043153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

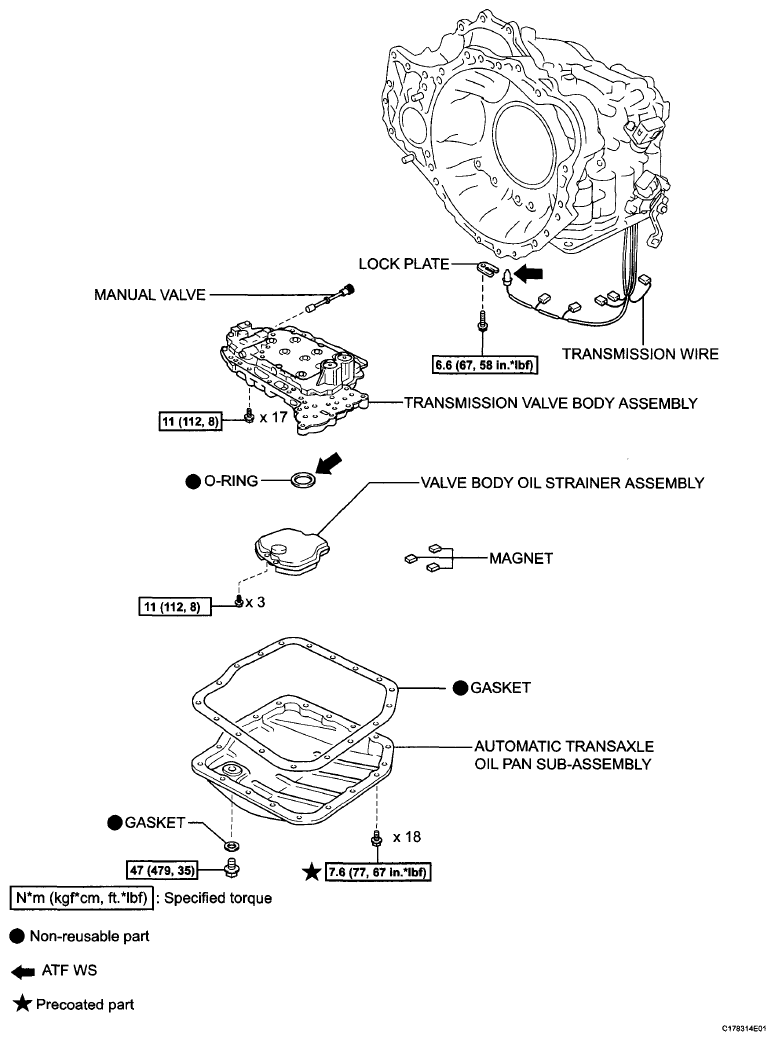

Fig 2: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
G06043154Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

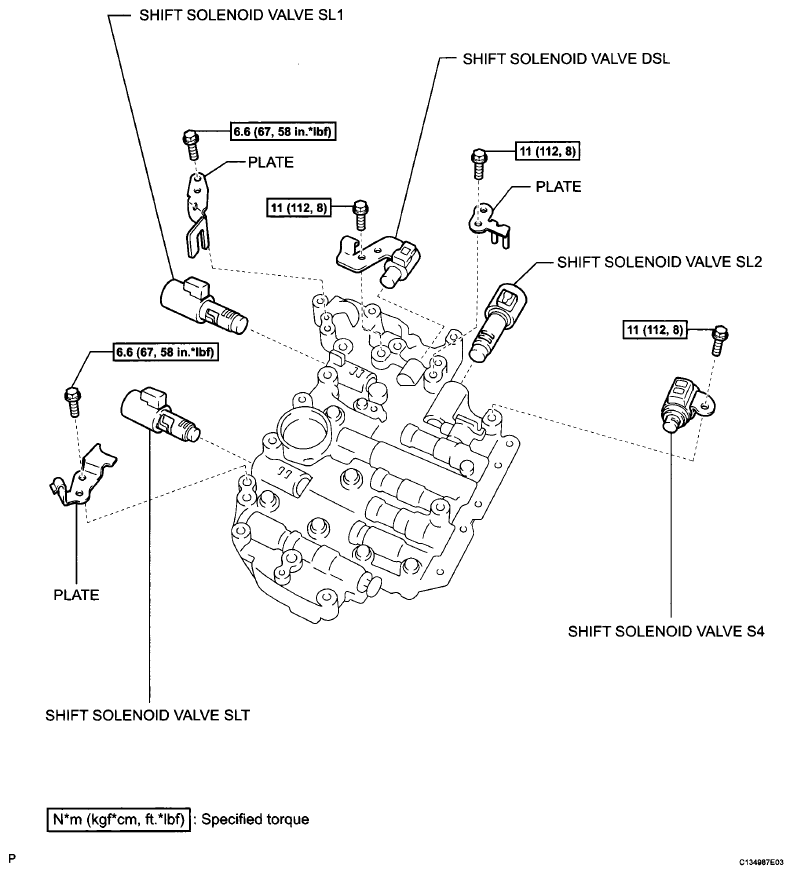

Fig 3: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
G06043155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
