Auto Up Operation does not Fully Close Power Window (Jam Protection Function is Activated): Wiring Diagram

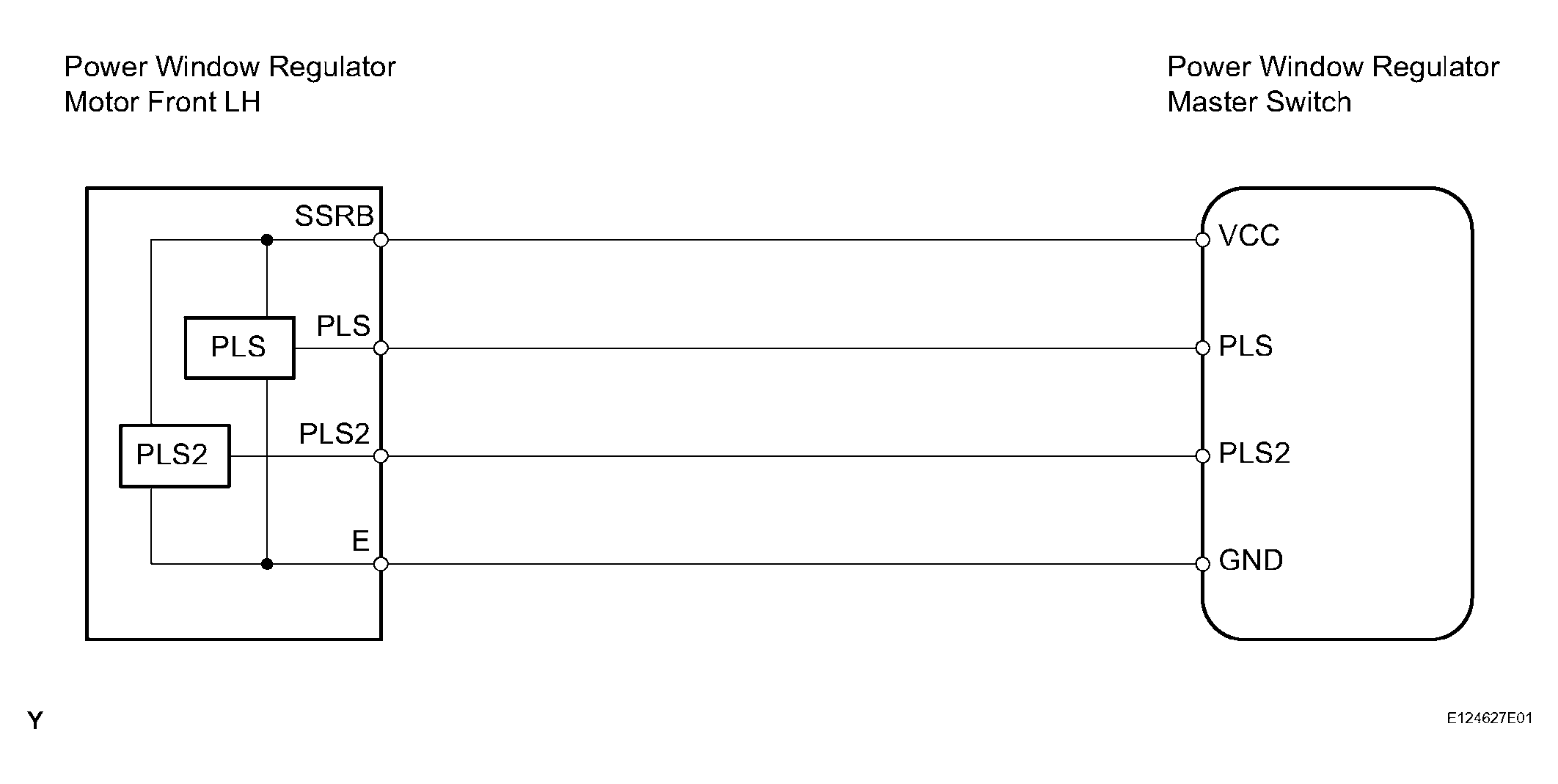

Fig 1: Auto Up Operation Not Fully Close Power Window - Wiring Diagram
G04476767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
