DTC P1120 Coolant Flow Control Valve Position Sensor Circuit; DTC P1122 Coolant Flow Control Valve Position Sensor Circuit Low; DTC P1123 Coolant Flow Control Valve Position Sensor Circuit High: Wiring Diagram

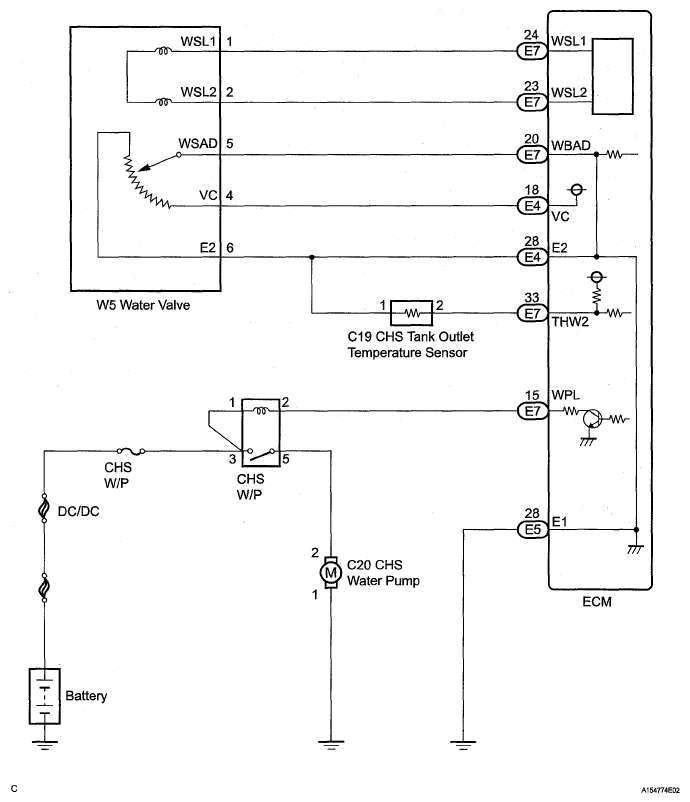

Fig 1: Water Valve And Tank Outlet Temperature Sensor - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
