Fuel Lid Lock Control: Installation

INSTALL FUEL FILLER OPENING LID LOCK RETAINER
1. Install the lock retainer and turn it clockwise as shown in Fig 1.

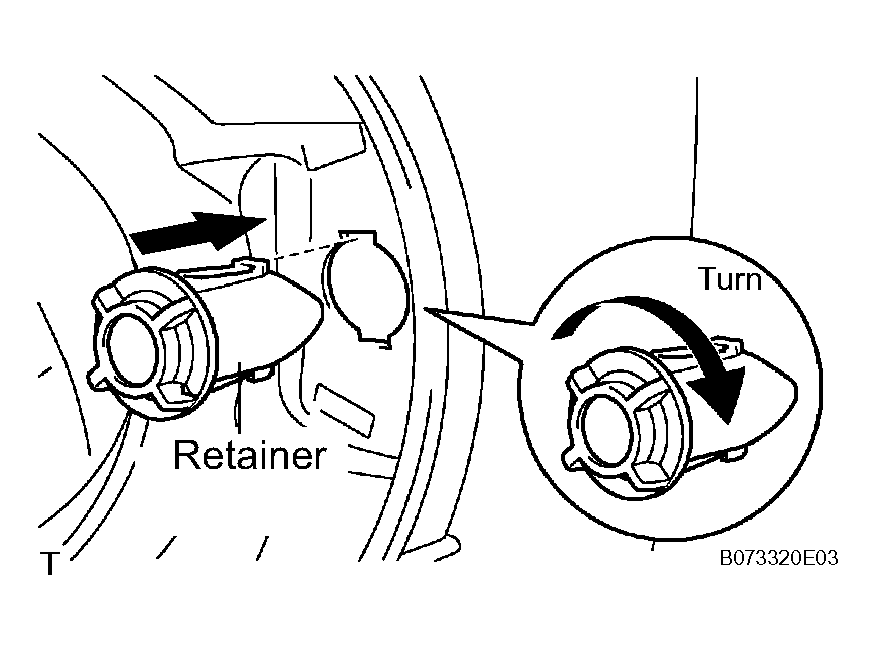

  Fig 1: Installing Fuel Filler Opening Lid Lock Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL LID LOCK CONTROL CABLE SUB-ASSEMBLY
1. Attach the claw and install the cable to the lock retainer.

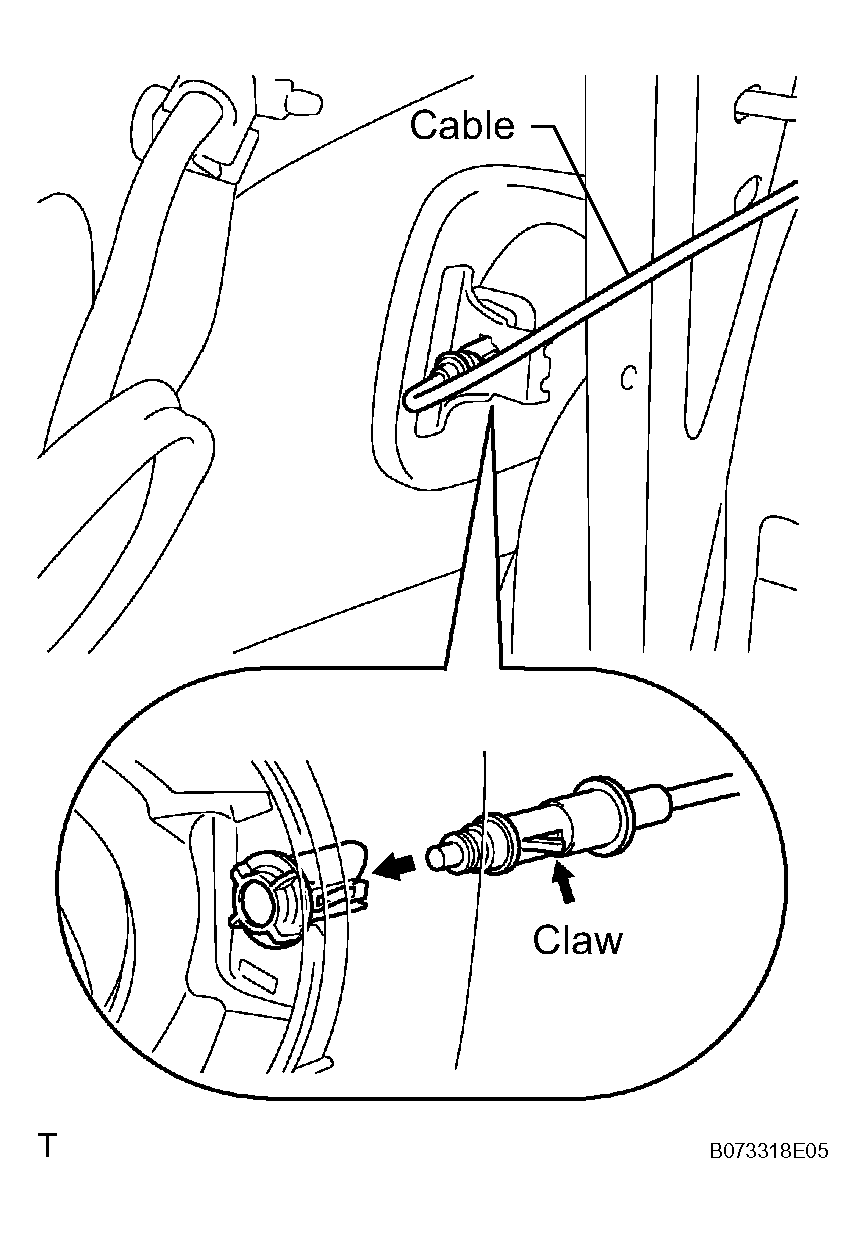

  Fig 2: Installing Fuel Lid Lock Control Cable
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cable from the clamps at the location shown in Fig 3.

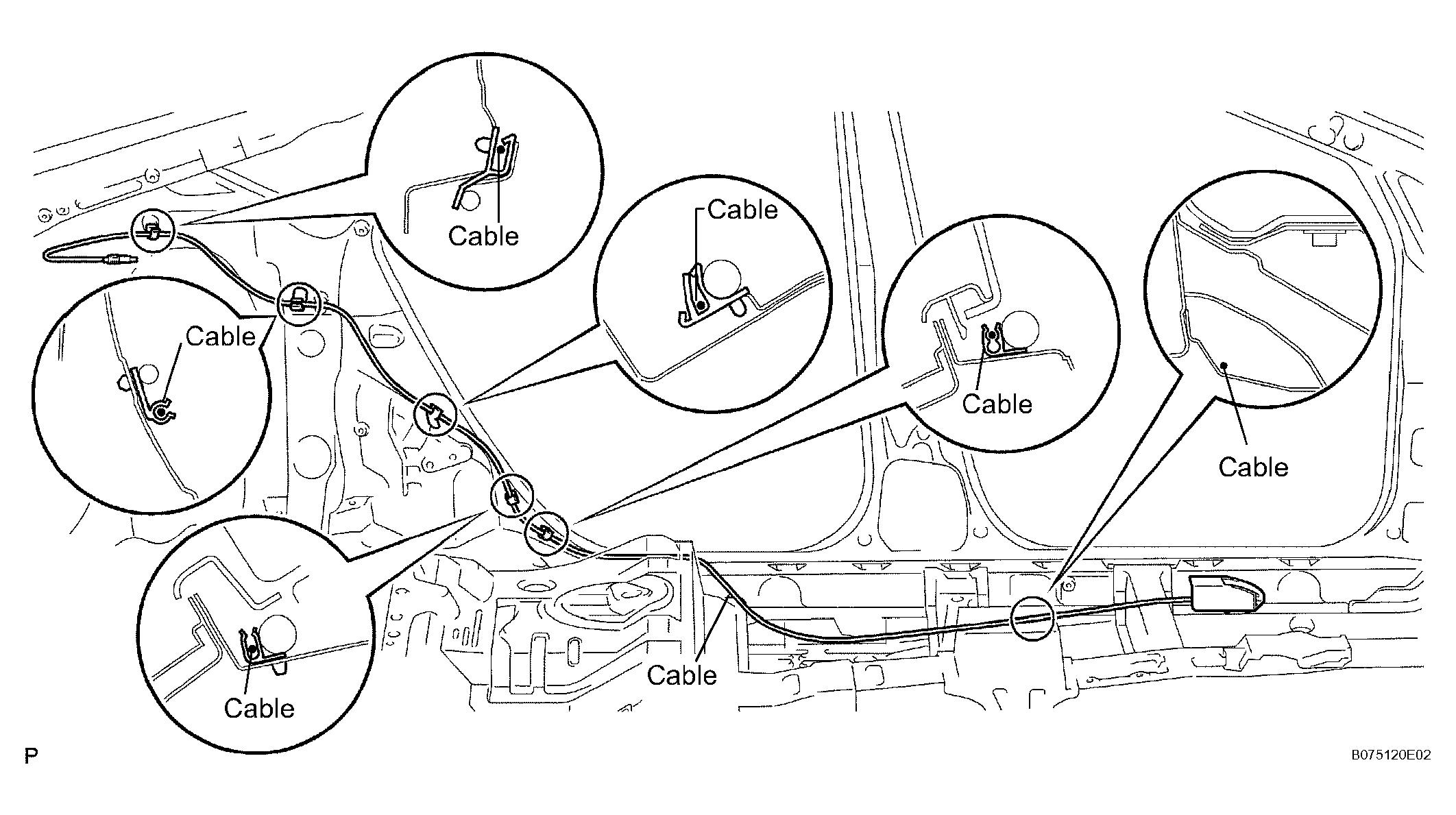

  Fig 3: Connecting Cable From Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FUEL LID LOCK OPEN LEVER SUB-ASSEMBLY
1. Connect the cable to the lever.
2. Install the lever with the screw.
Fig 4: Installing Fuel Lid Lock Open Lever Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH (See INSTALLATION )
INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH (See INSTALLATION )
INSTALL CENTER PILLAR LOWER GARNISH LH (See INSTALLATION )
INSTALL REAR DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL FRONT DOOR SCUFF PLATE LH (See INSTALLATION )
INSTALL REAR SIDE SEATBACK ASSEMBLY LH (See INSTALLATION )
INSTALL REAR SEAT CUSHION ASSEMBLY (See INSTALLATION )
INSTALL FRONT SEAT ASSEMBLY LH
1. Install the seat (see INSTALLATION ).
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
1. Perform INITIALIZATION .
  NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
