Ground Point: Notes

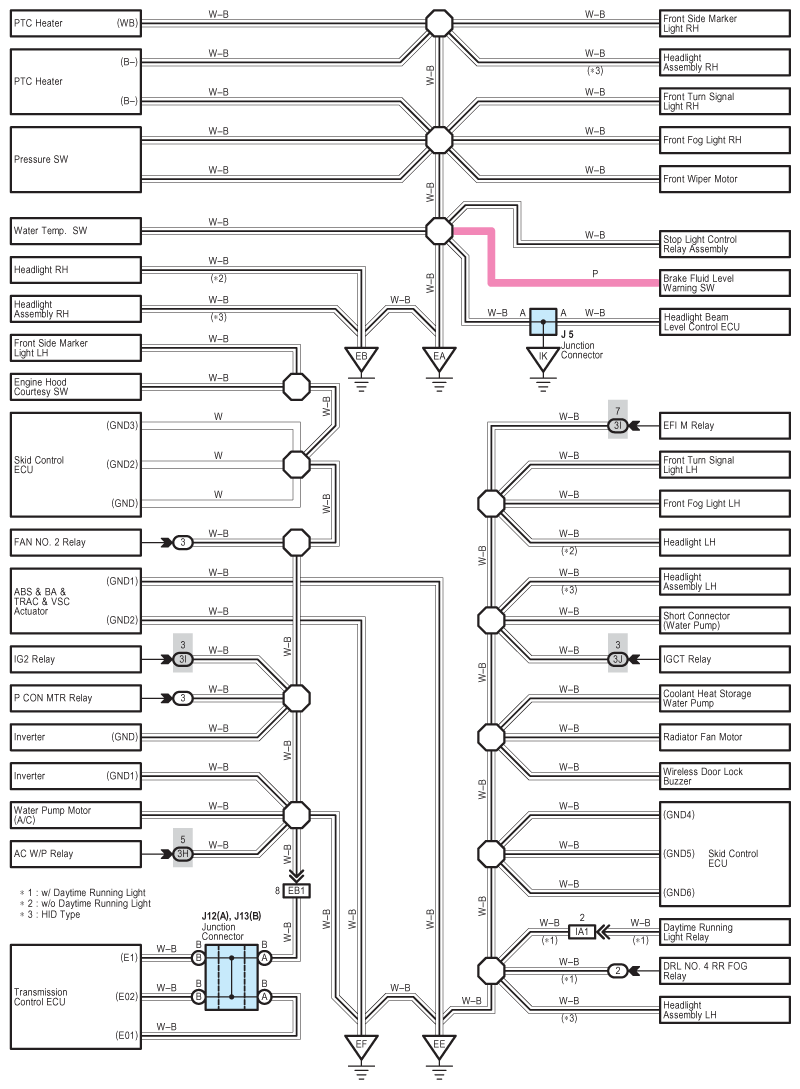

Fig 1: Ground Point - Wiring Diagram (1 Of 4)
G07611109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

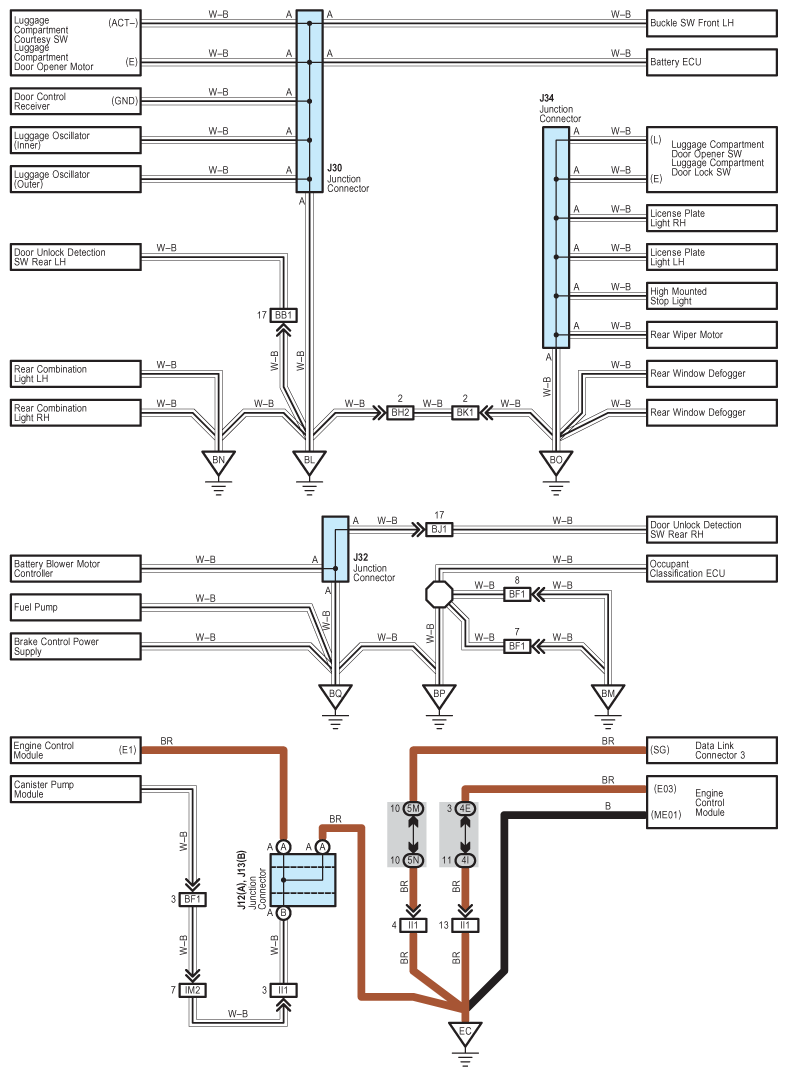

Fig 2: Ground Point - Wiring Diagram (2 Of 4)
G07611110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

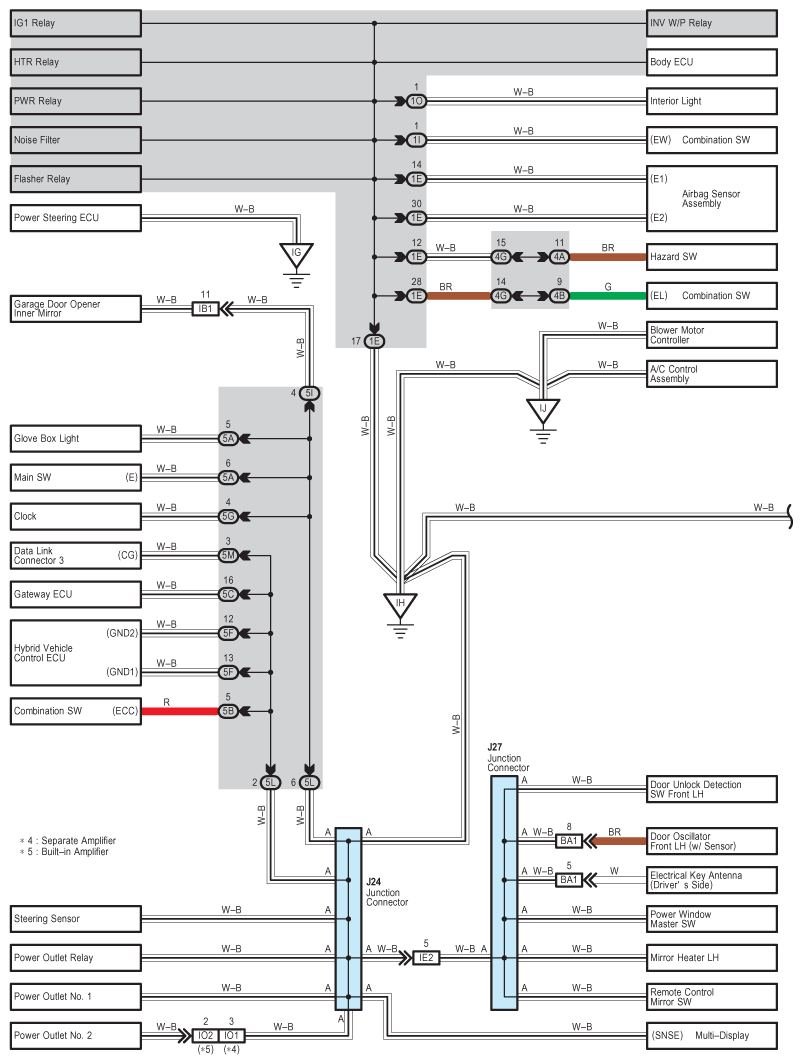

Fig 3: Ground Point - Wiring Diagram (3 Of 4)
G07611111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

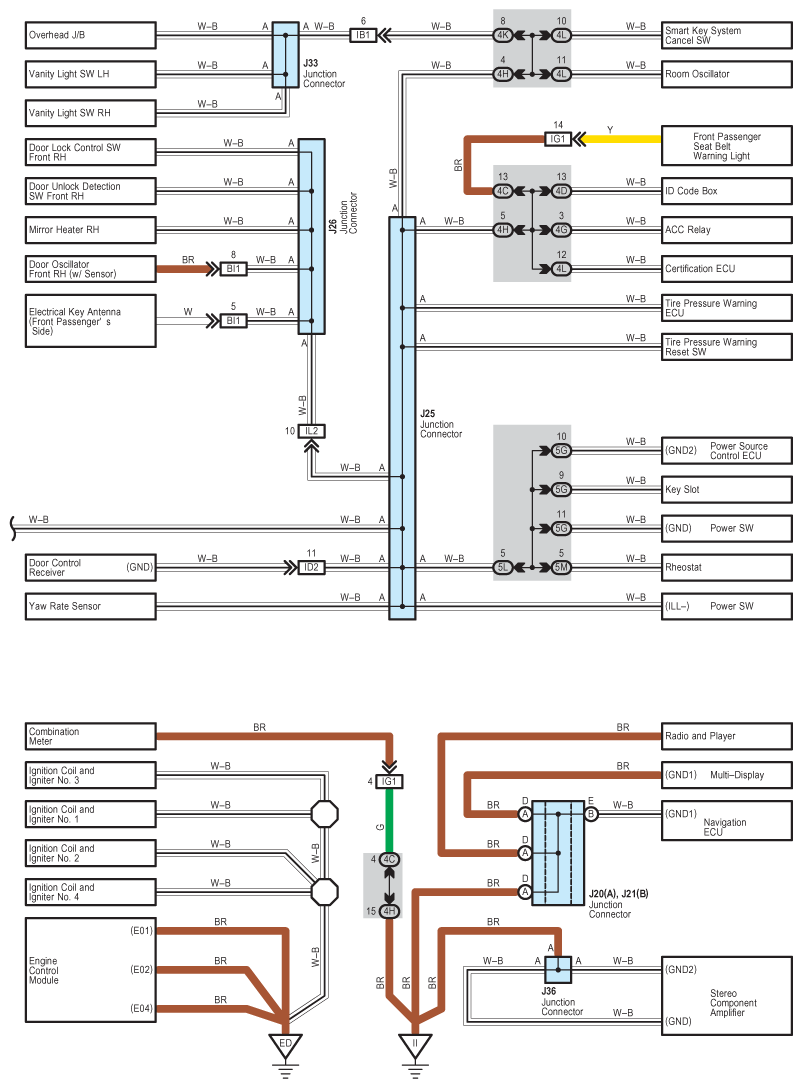

Fig 4: Ground Point - Wiring Diagram (4 Of 4)
G07611112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
