High Pitched Horn: Components

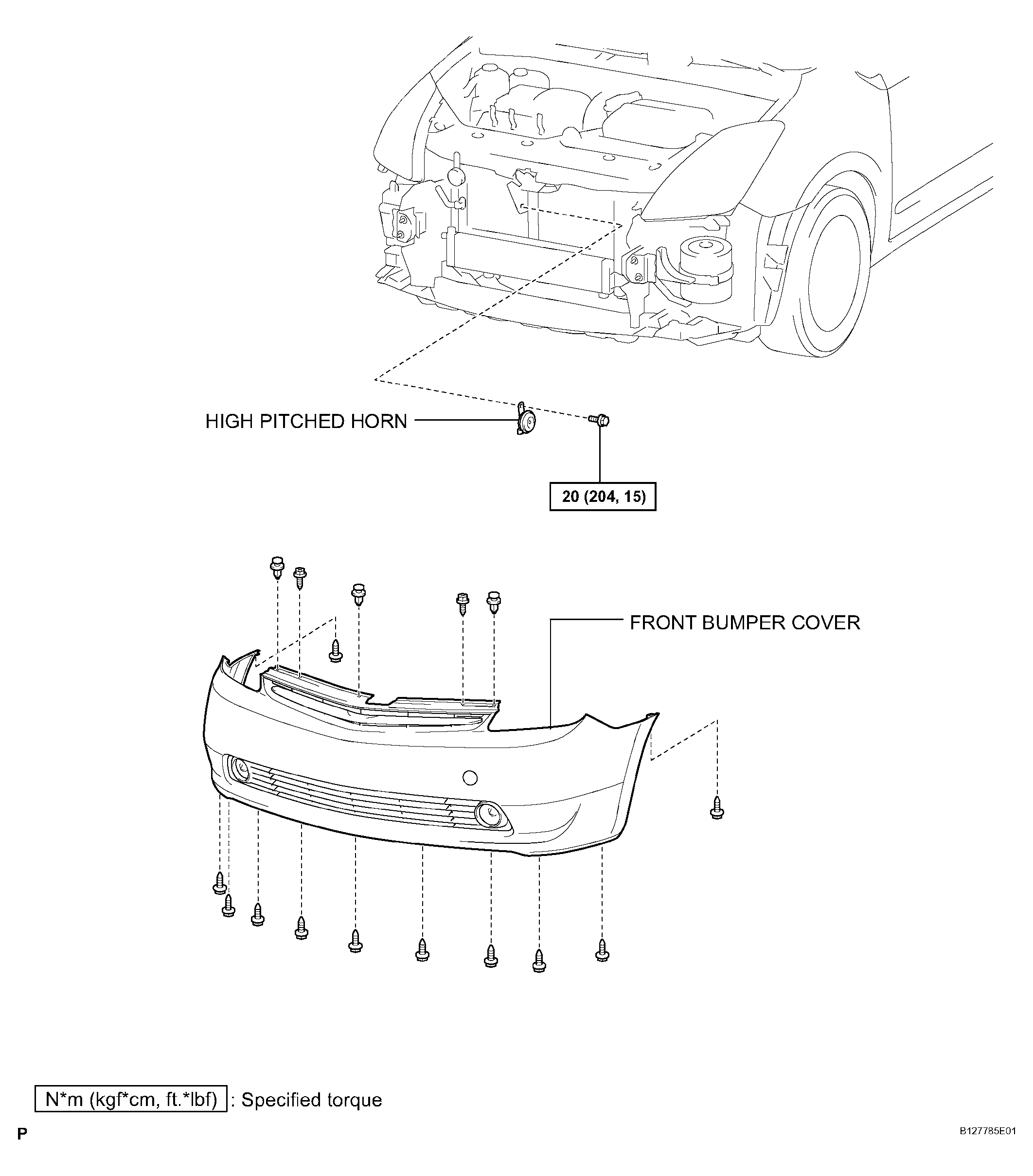

Fig 1: Identifying High Pitched Horn Components
G04476704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
