Frame Wire: Components

Fig 1: Identifying Frame Wire Components (1 Of 6)
G05674910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Frame Wire Components (2 Of 6)
G05674911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

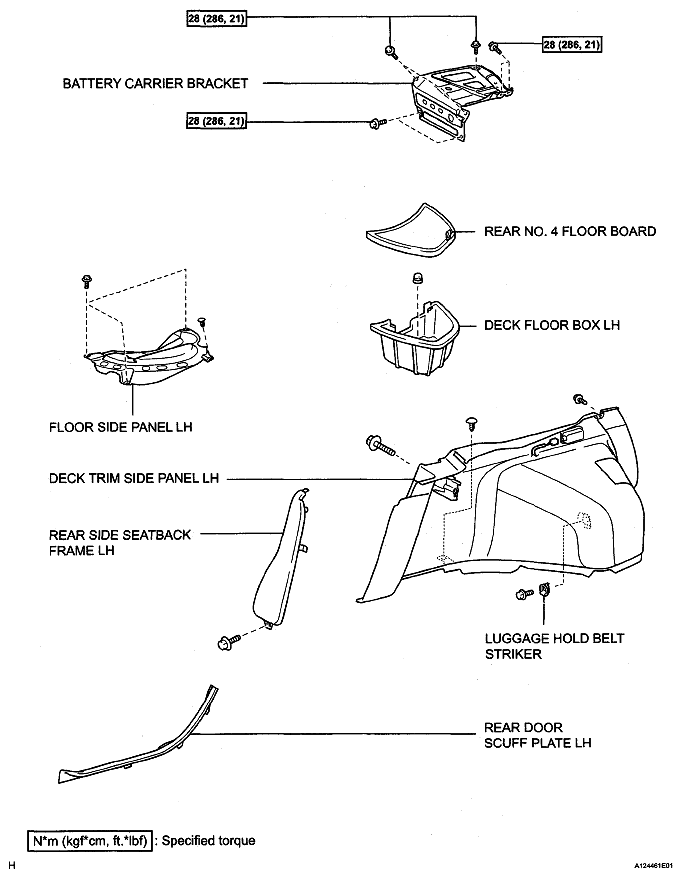

Fig 3: Identifying Frame Wire Components (3 Of 6)
G05674912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

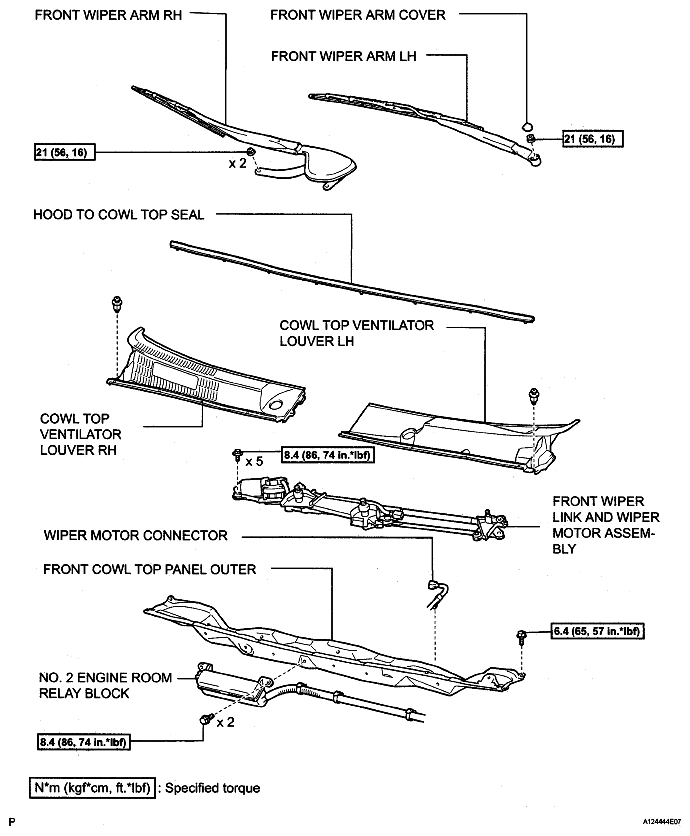

Fig 4: Identifying Frame Wire Components (4 Of 6)
G05674913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

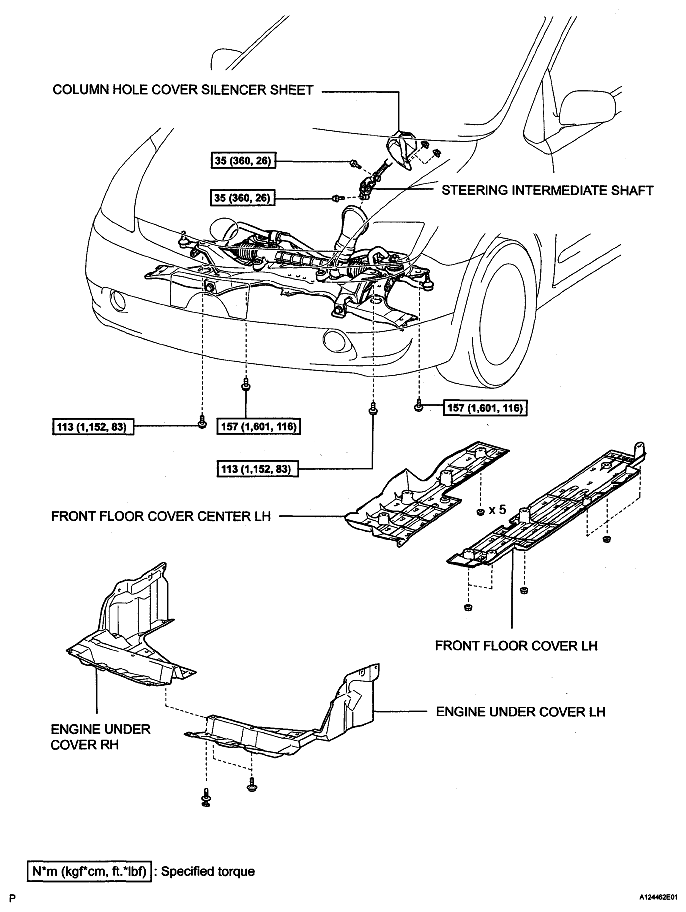

Fig 5: Identifying Frame Wire Components (5 Of 6)
G05674914Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

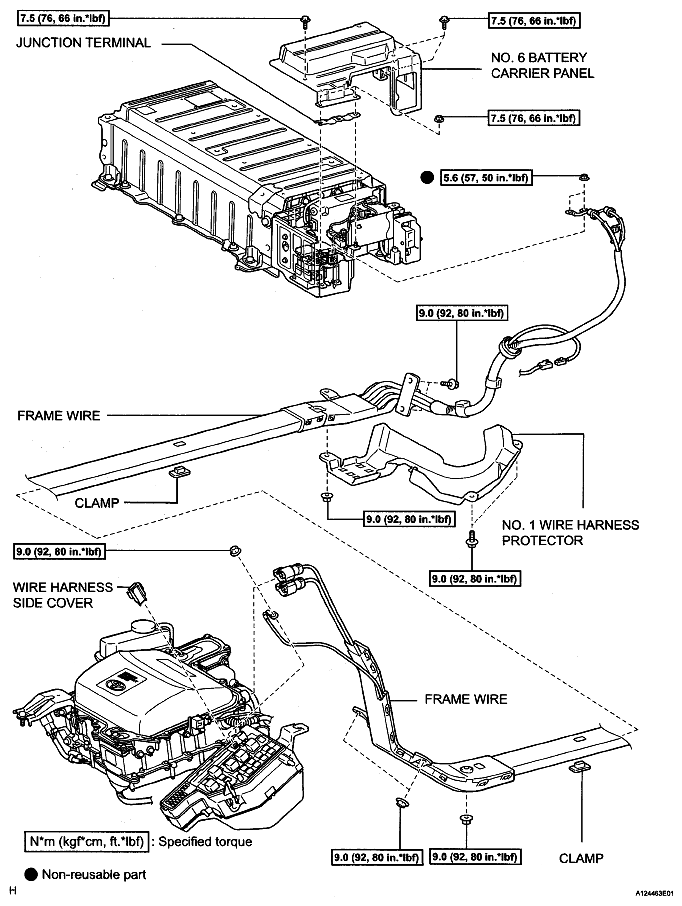

Fig 6: Identifying Frame Wire Components (6 Of 6)
G05674915Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
