Inverter With Converter: Components

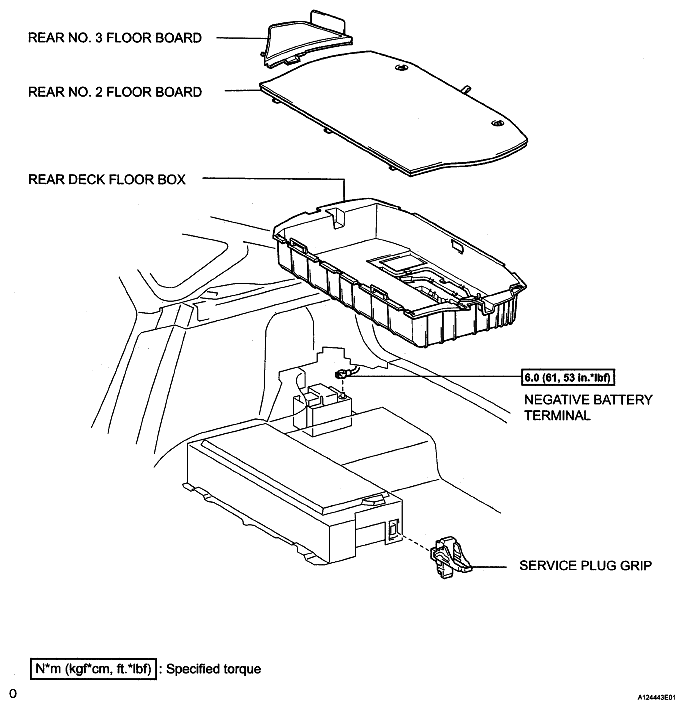

Fig 1: Identifying Inverter Components (1 Of 5)
G05674851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

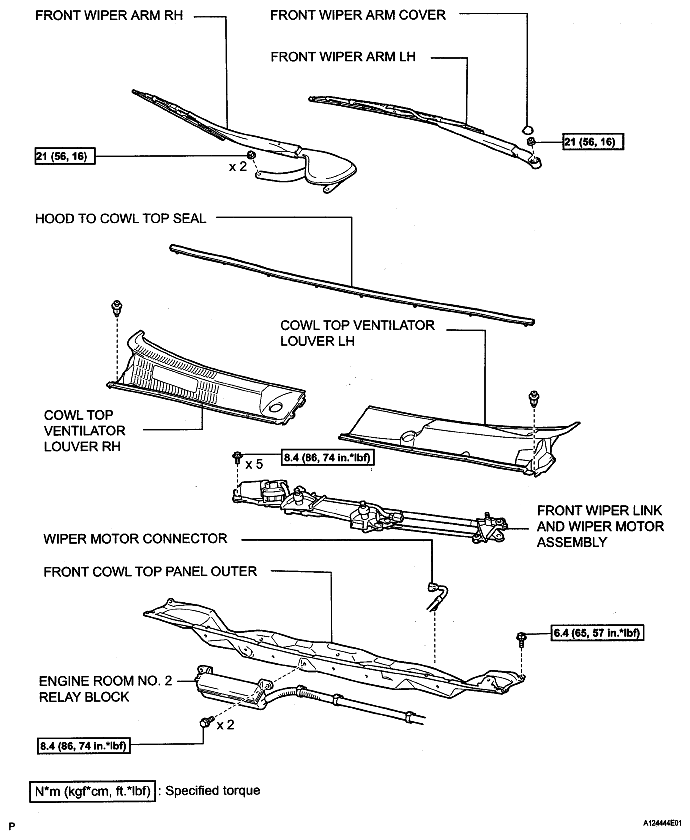

Fig 2: Identifying Inverter Components (2 Of 5)
G05674852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

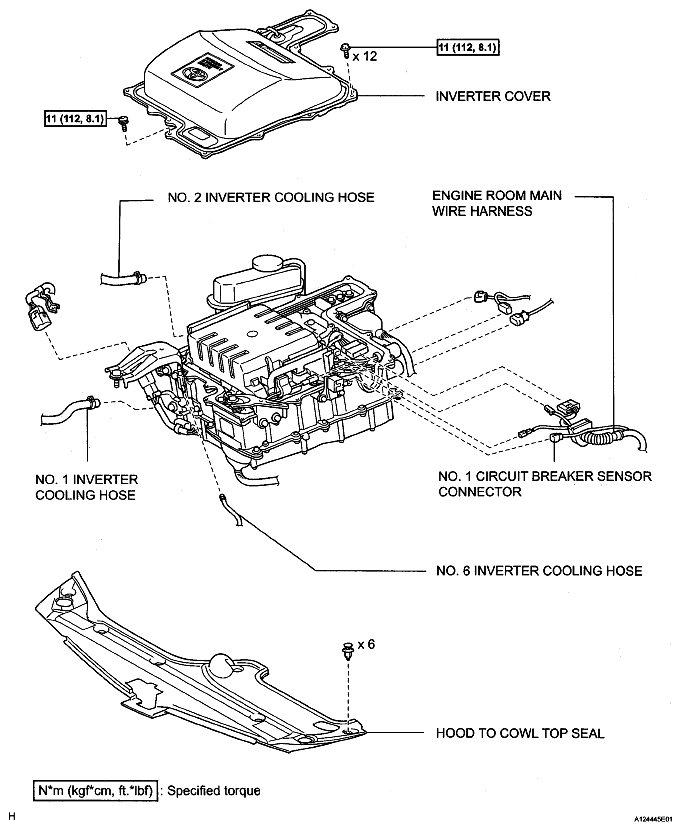

Fig 3: Identifying Inverter Components (3 Of 5)
G05674853Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

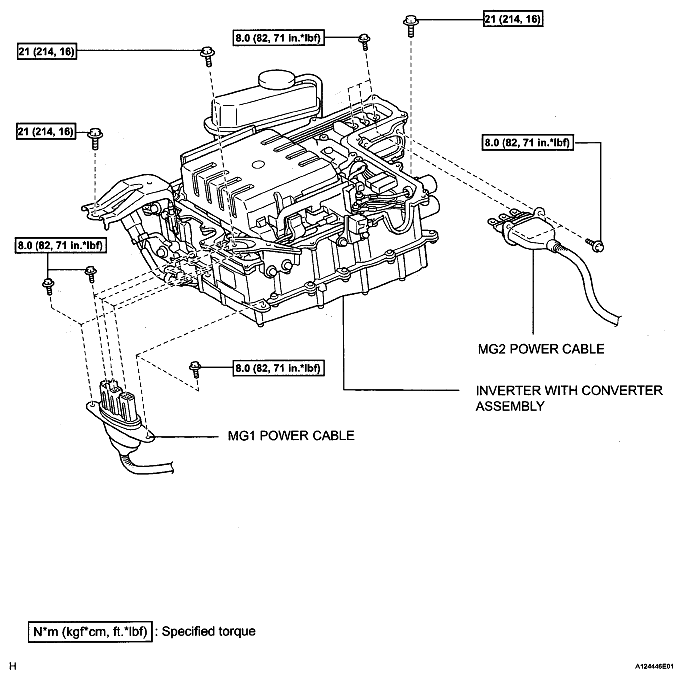

Fig 4: Identifying Inverter Components (4 Of 5)
G05674854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

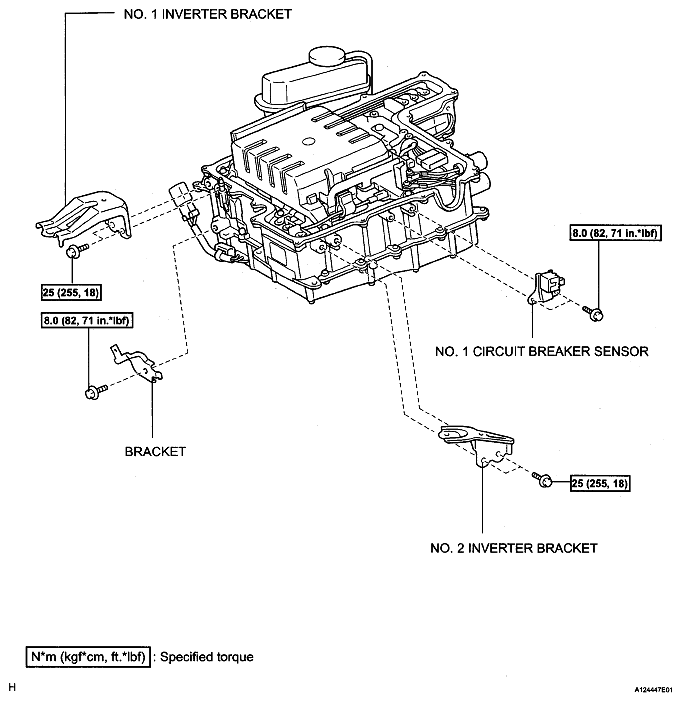

Fig 5: Identifying Inverter Components (5 Of 5)
G05674855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
