Inner Rear View Mirror: Components

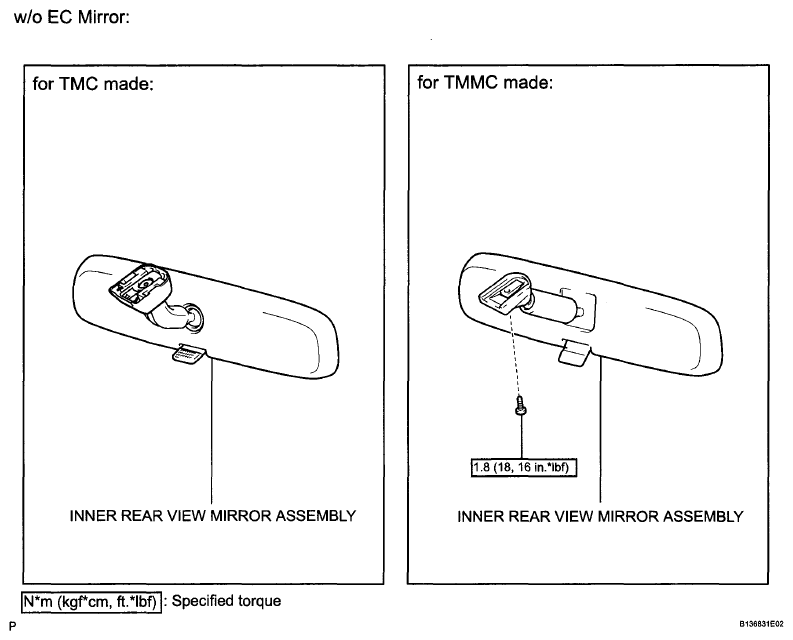

Fig 1: Inner Rear View Mirror Assembly With Torque Specifications (W/O EC Mirror)
G06000671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

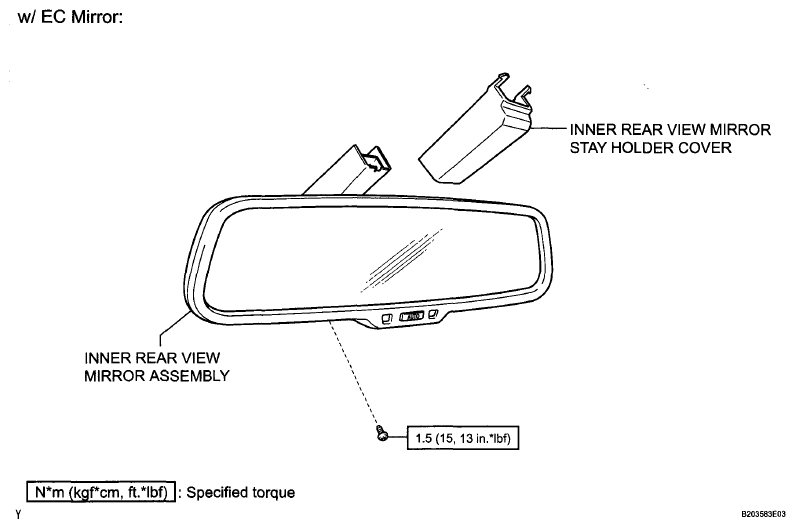

Fig 2: Inner Rear View Mirror Assembly With Torque Specifications (W/ EC Mirror)
G06000672Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
