Outer Rear View Mirror: Components

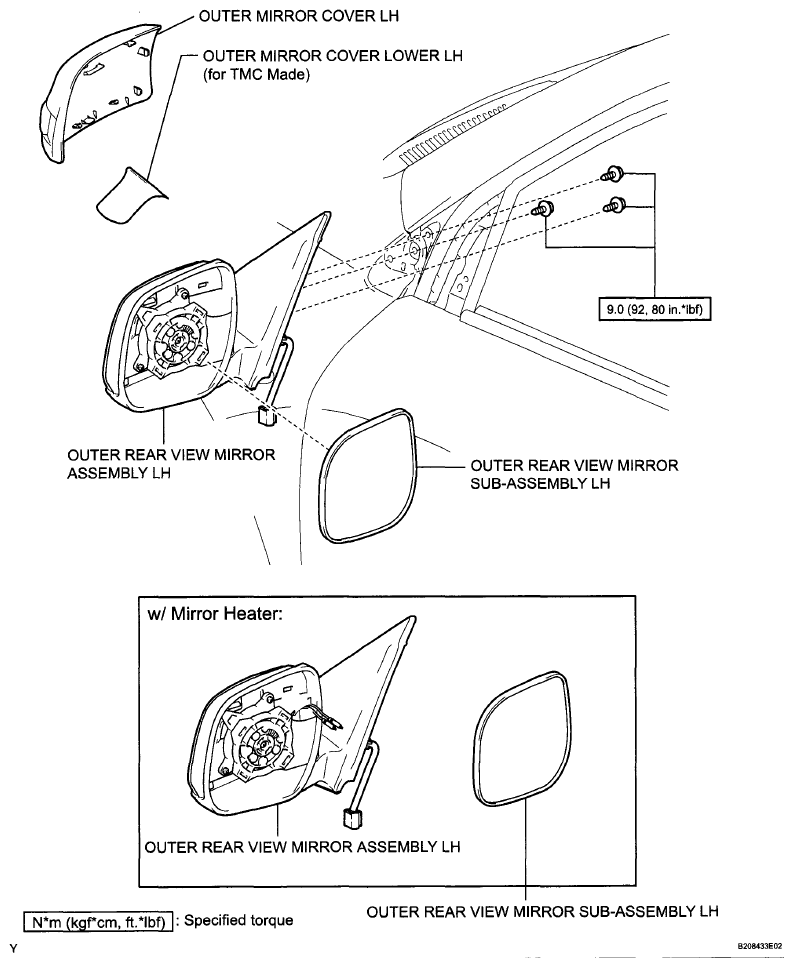

Fig 1: Outer Rear View Mirror Replacement Components With Torque Specifications
G06000683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

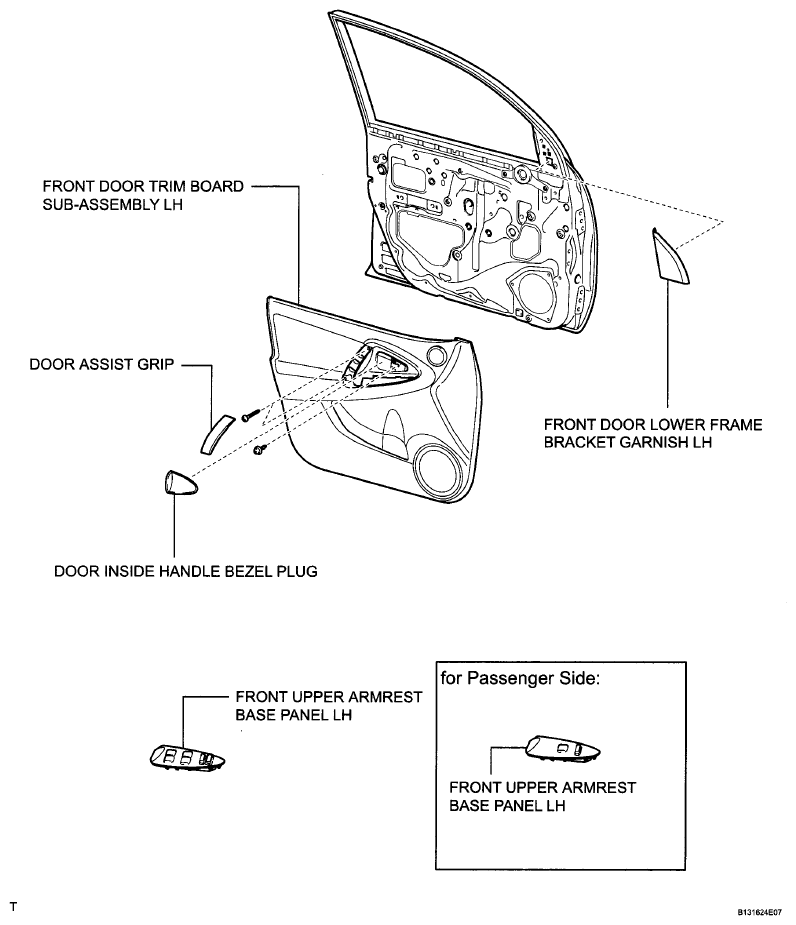

Fig 2: Front Door Replacement Components With Torque Specifications
G06000684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
