Power Outlet (120V): Notes

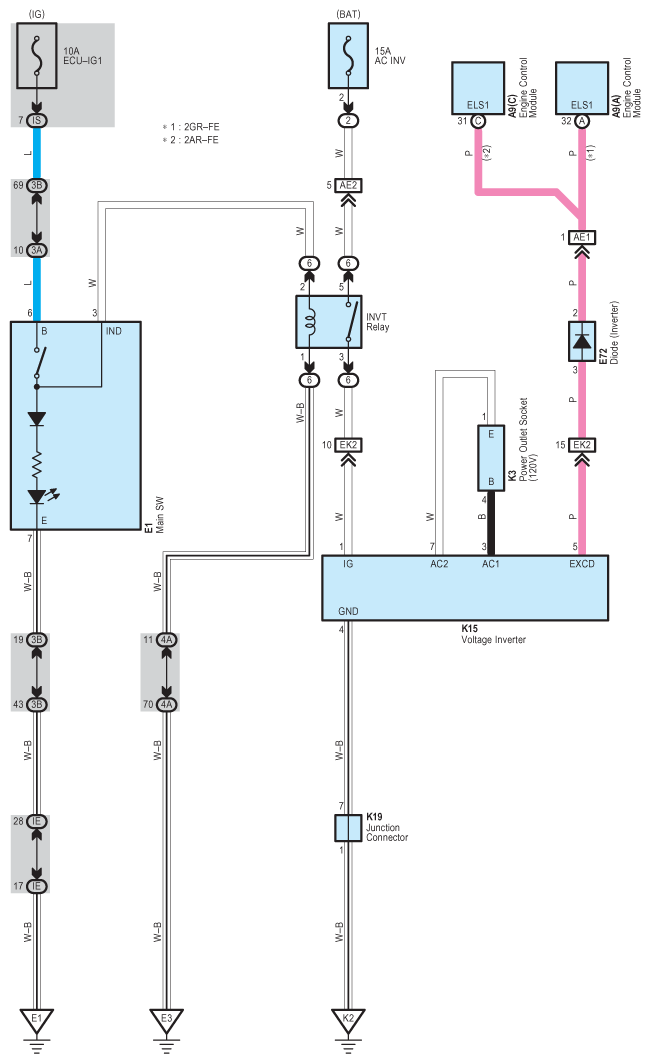

Fig 1: Power Outlet (120V) - Circuit Diagram
G07611646Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
