Fuel Pressure Regulator: Components

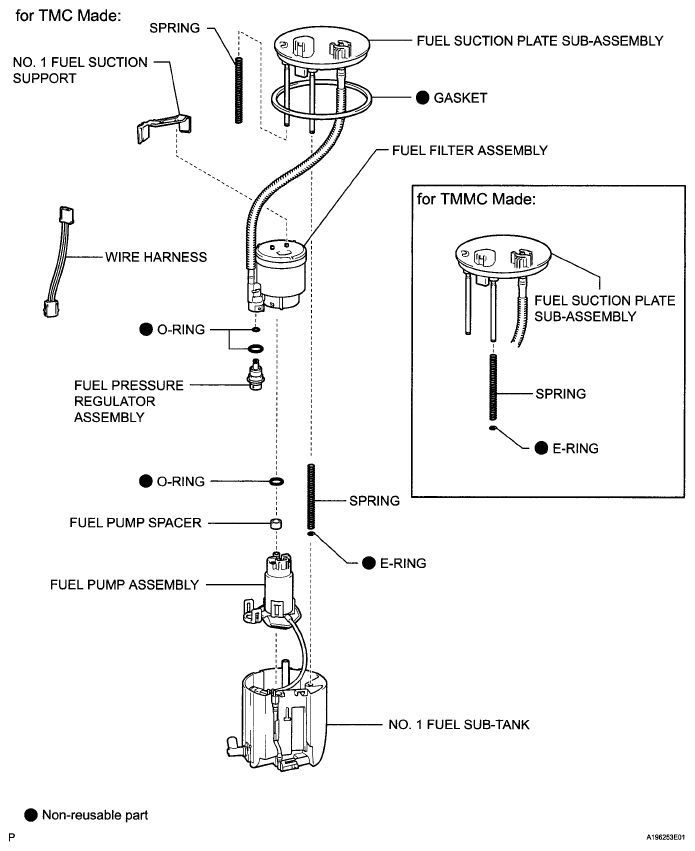

Fig 1: Identifying Fuel Pressure Regulator Components
G05998561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
