System Diagram

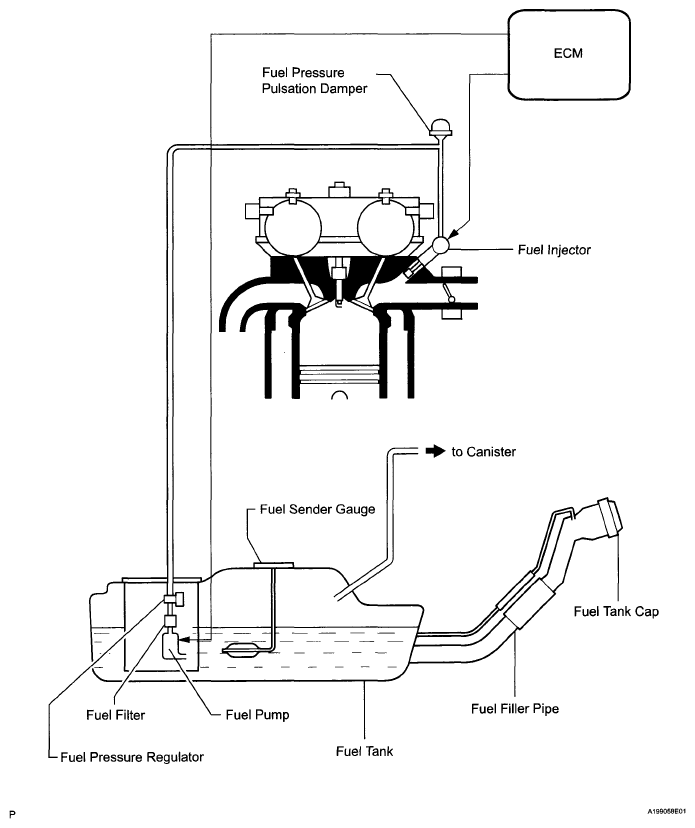

  1. FUEL FLOW DIAGRAM
    Fig 1: Fuel Flow System Diagram
    G05998416Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

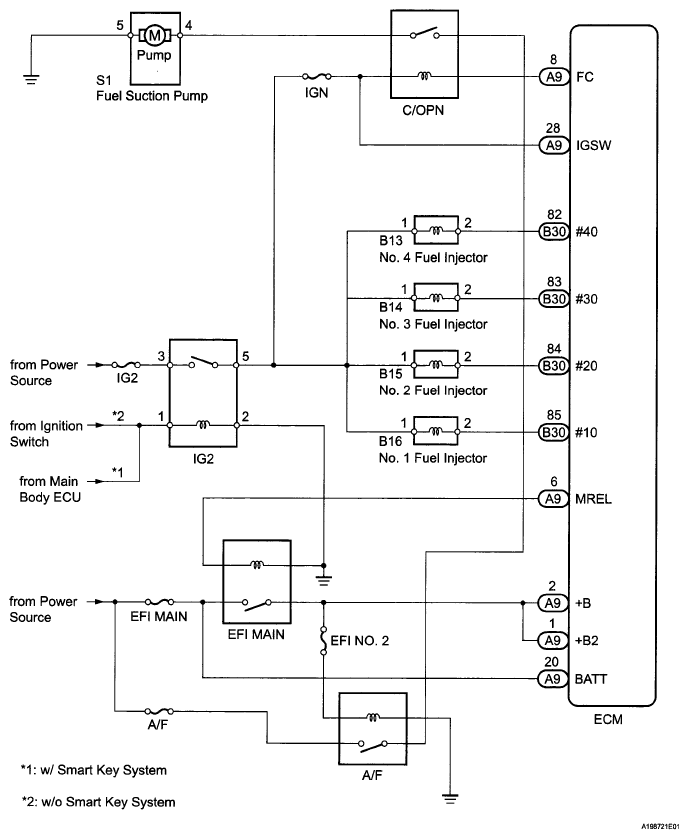

  2. FUEL SYSTEM WIRING DIAGRAM
    Fig 2: Fuel System - Wiring Diagram
    G05998417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
