Fuel Tank: Components

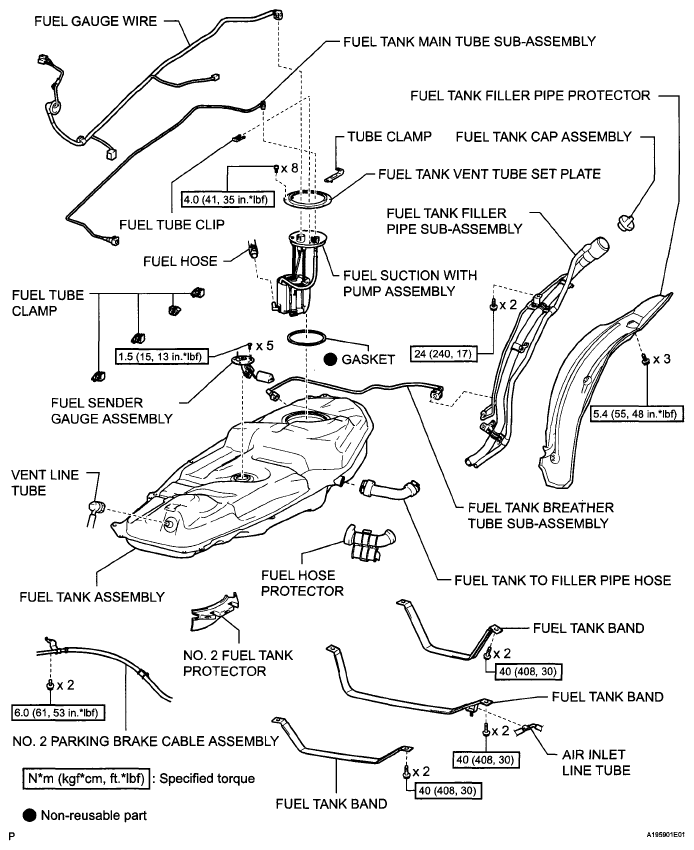

Fig 1: Fuel Tank Replacement Components With Torque Specifications
G05998611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
