Slide Door Closer: Notes

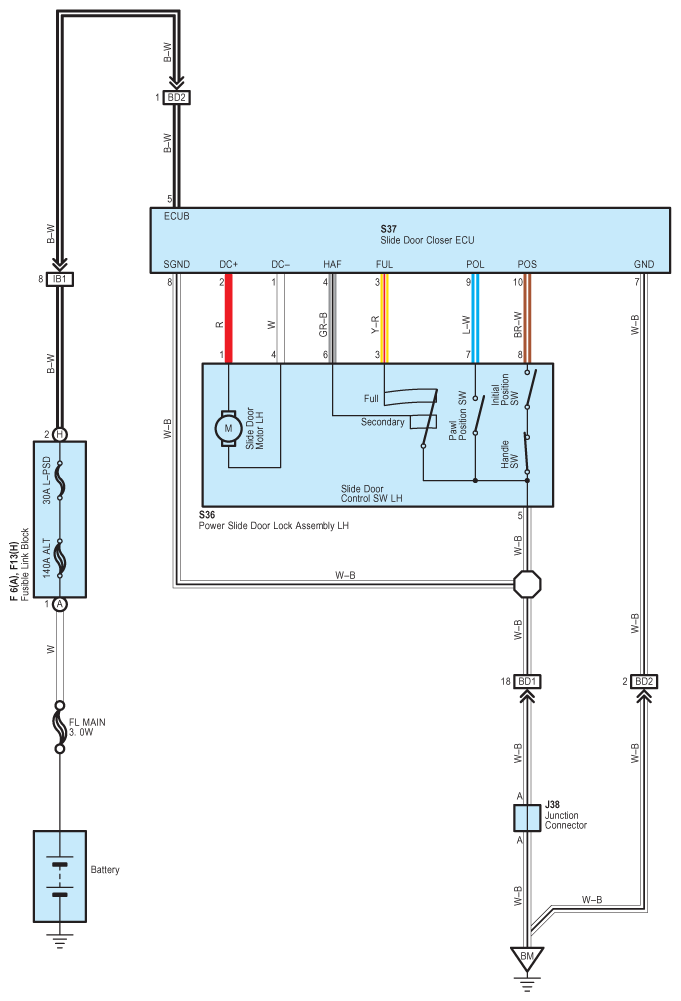

Fig 1: Slide Door Closer - Circuit Diagram
G07609433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
