Front Shock Absorber With Coil Spring: Components

Fig 1: Identifying Front Shock Absorber With Coil Spring Component (1 Of 2)
G05139397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

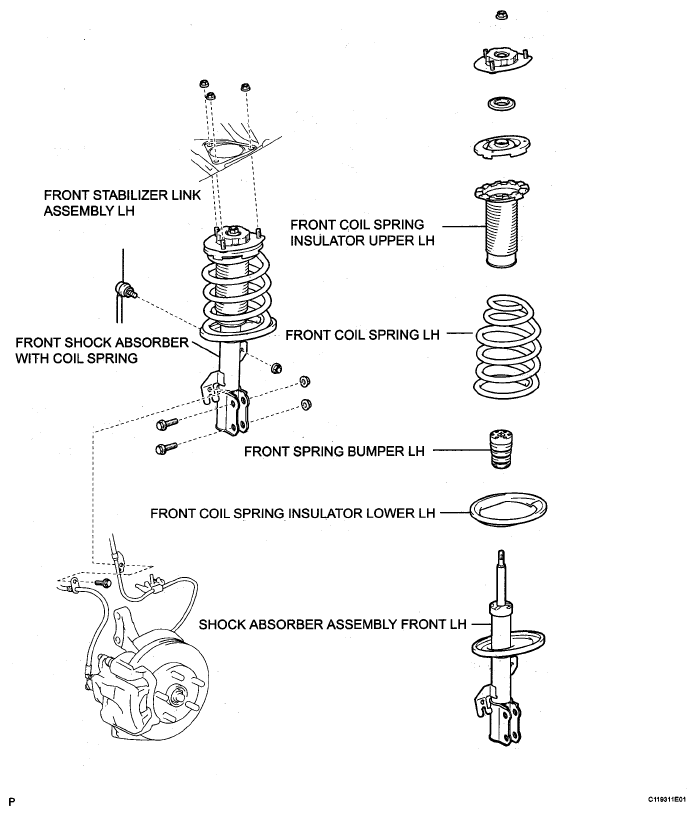

Fig 2: Identifying Front Shock Absorber With Coil Spring Component (2 Of 2)
G05139398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
