Rear Coil Spring: Components

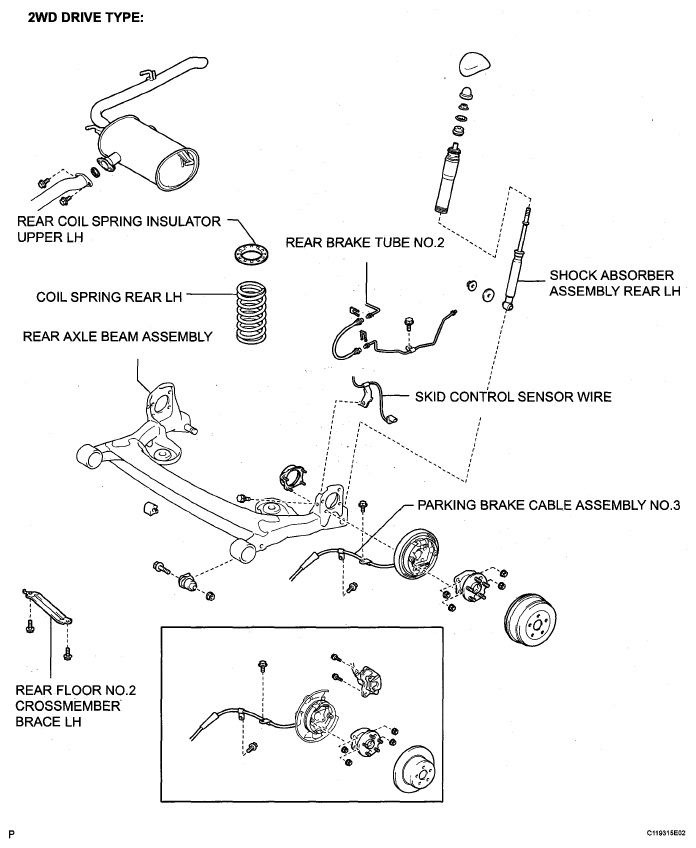

Fig 1: Identifying Rear Coil Spring Components (1 Of 3)
G05139445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

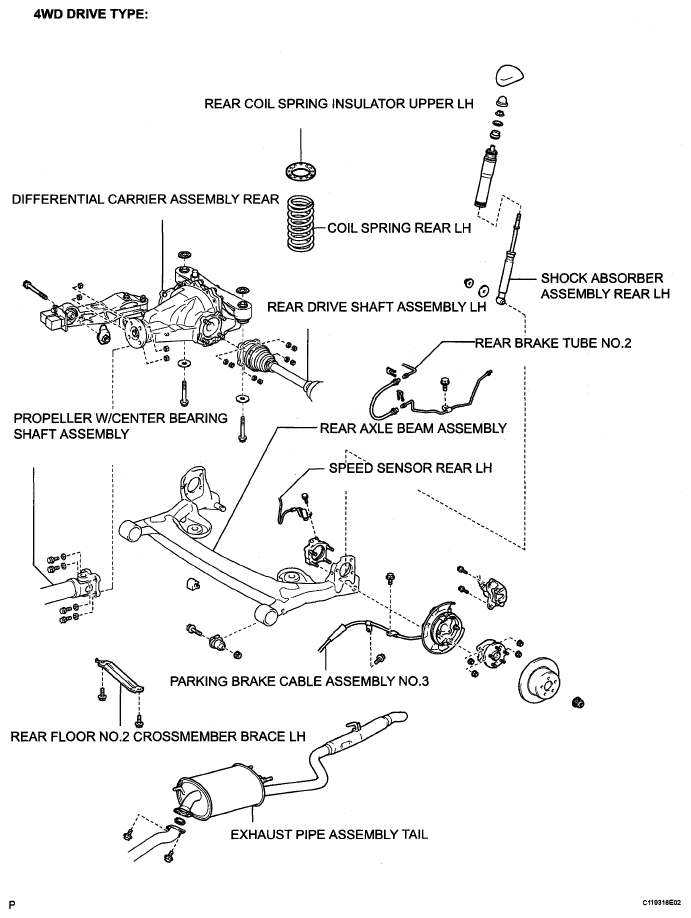

Fig 2: Identifying Rear Coil Spring Components (2 Of 3)
G05139446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Rear Coil Spring Components (3 Of 3)
G05139447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
