Front Window Deicer and Rear Window Defogger: Notes

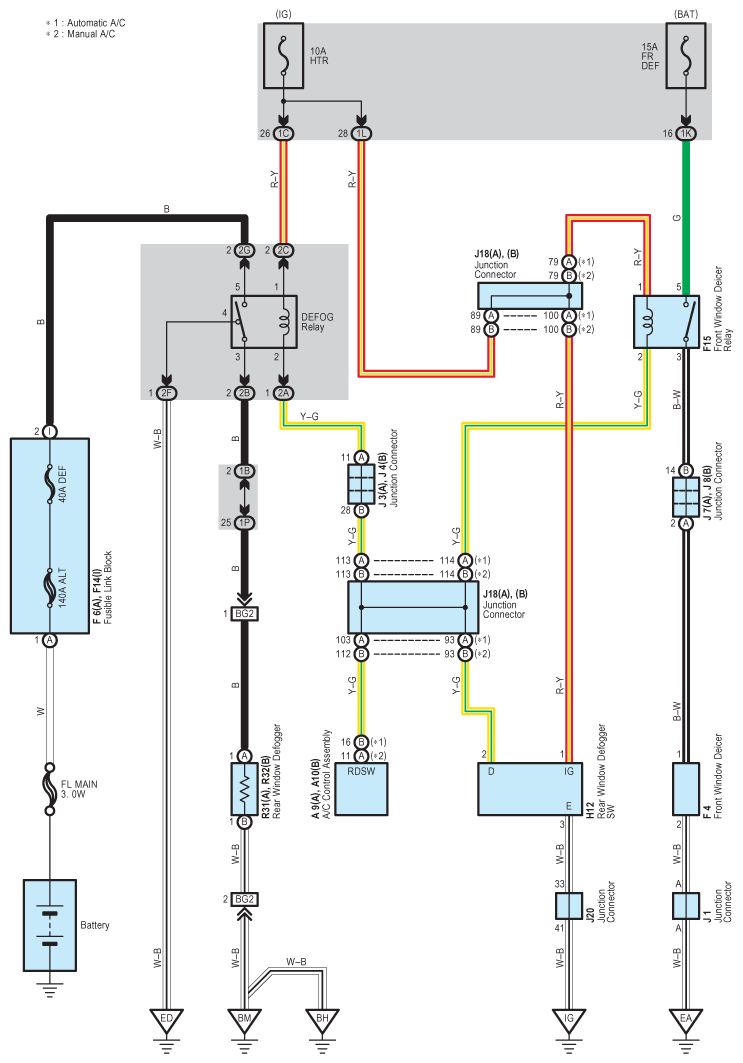

Fig 1: Front Window Deicer And Rear Window Defogger - Circuit Diagram
G07609523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
