Back Window Glass: Components

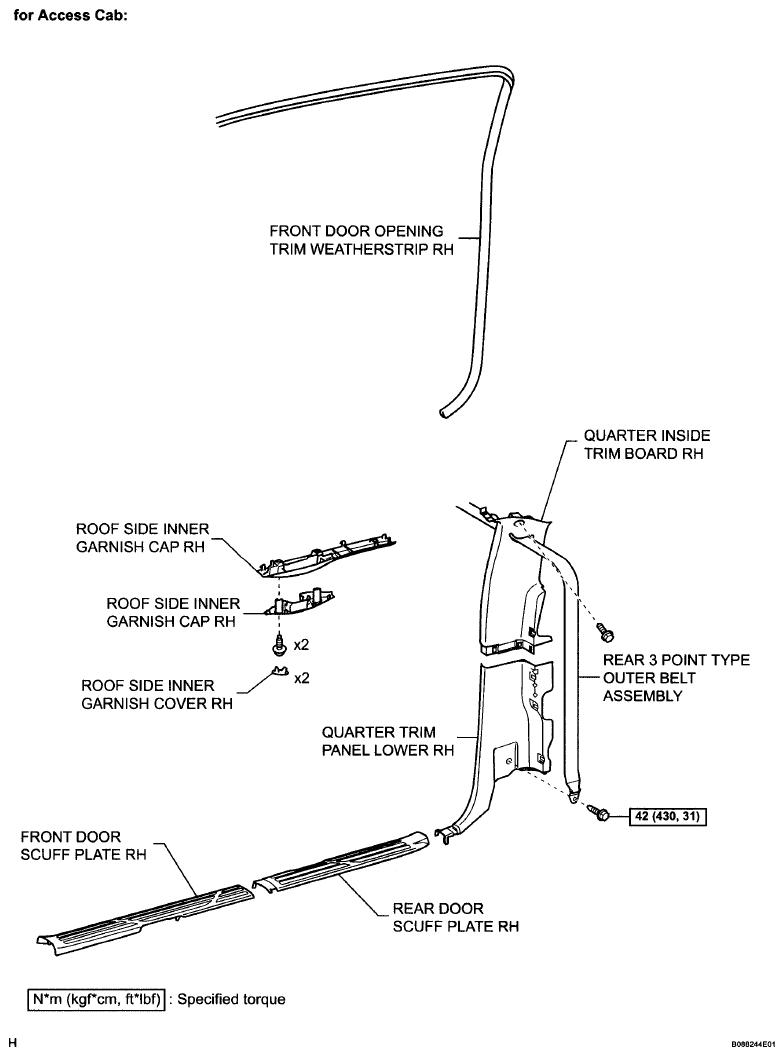

Fig 1: Back Window Glass Replacement Components With Torque Specifications (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

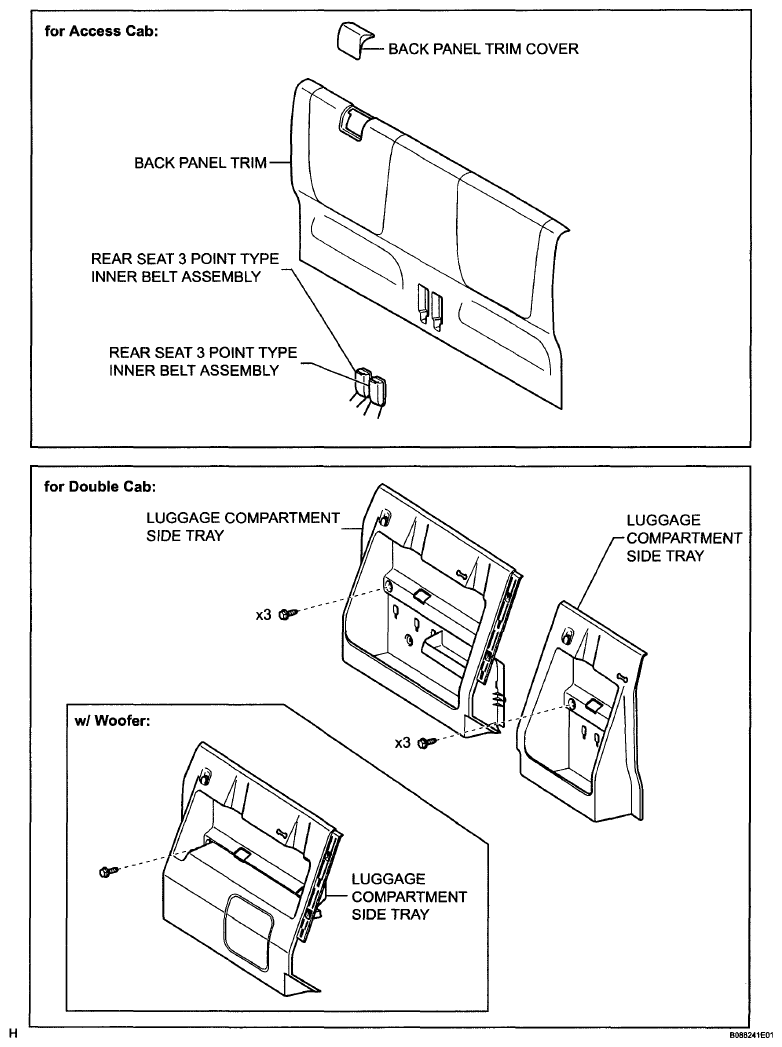

Fig 2: Back Window Glass Replacement Components With Torque Specifications (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

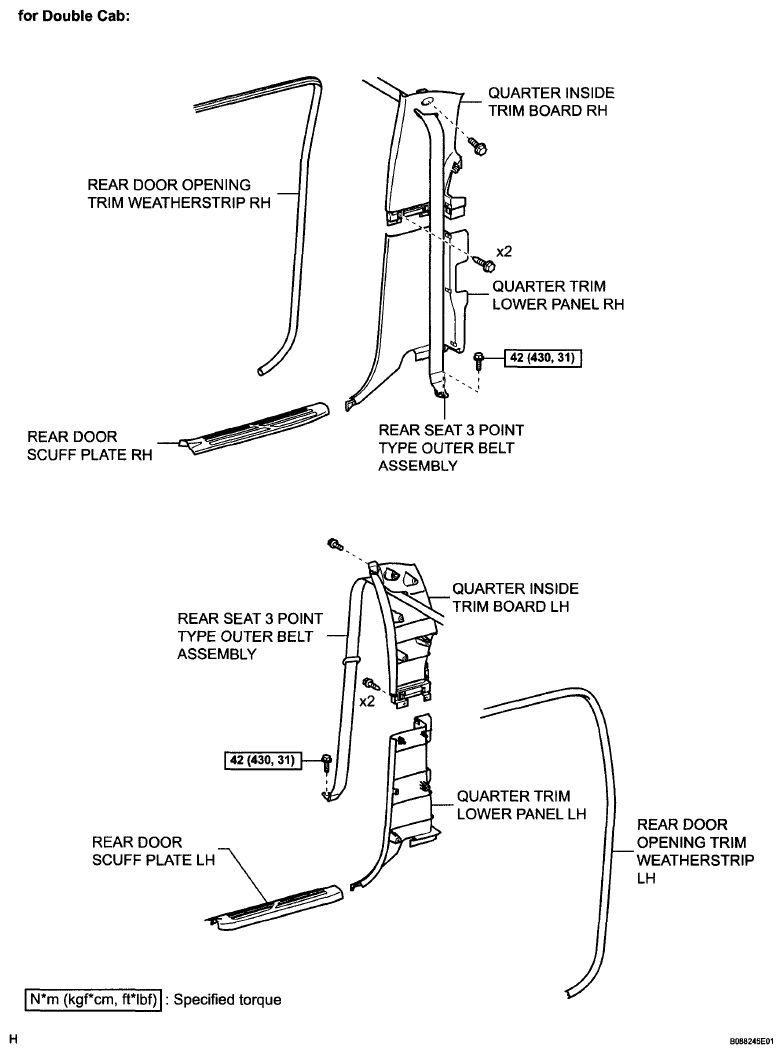

Fig 3: Back Window Glass Replacement Components With Torque Specifications (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

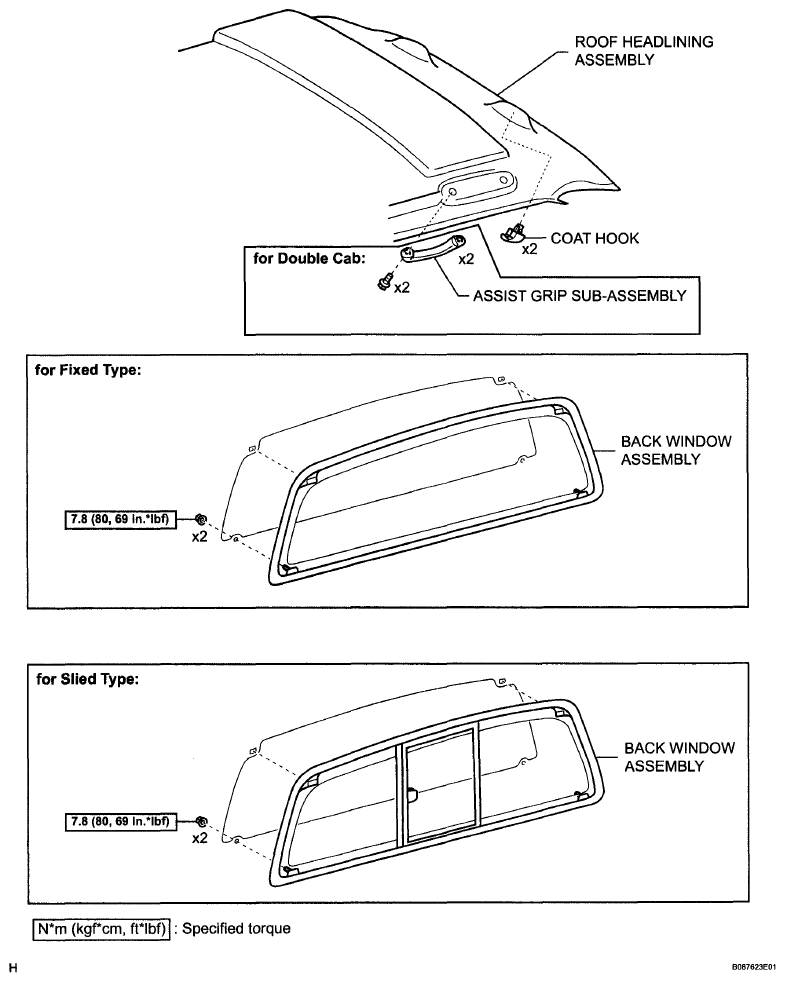

Fig 4: Back Window Glass Replacement Components With Torque Specifications (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

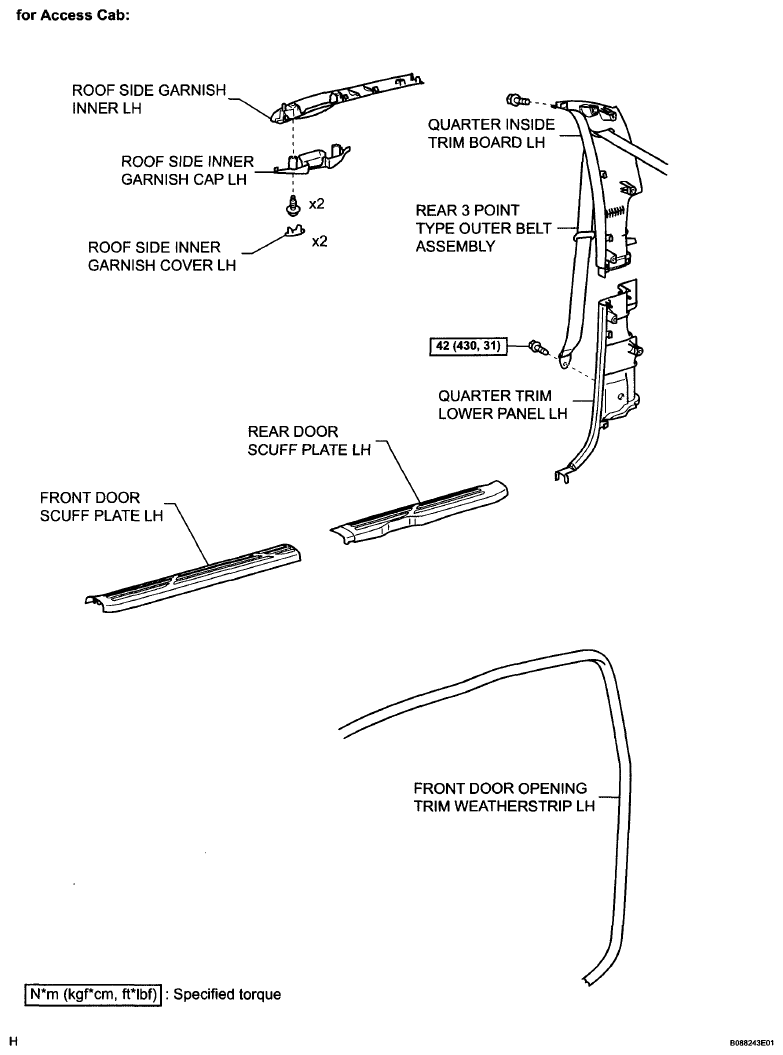

Fig 5: Back Window Glass Replacement Components With Torque Specifications (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

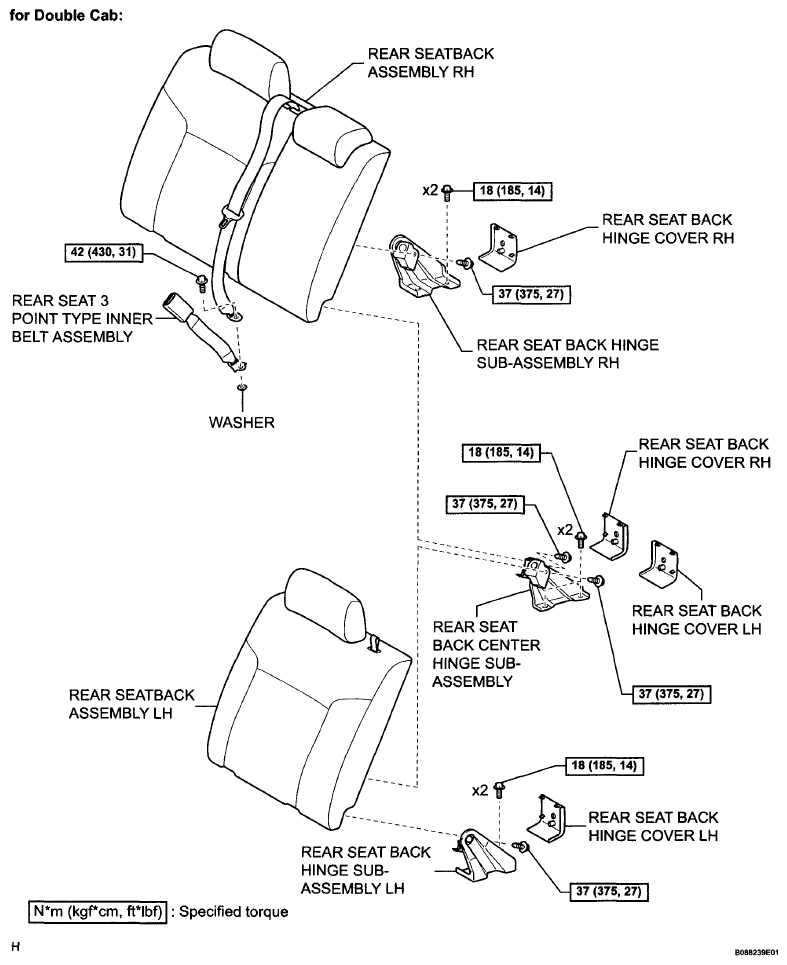

Fig 6: Back Window Glass Replacement Components With Torque Specifications (6 Of 8)

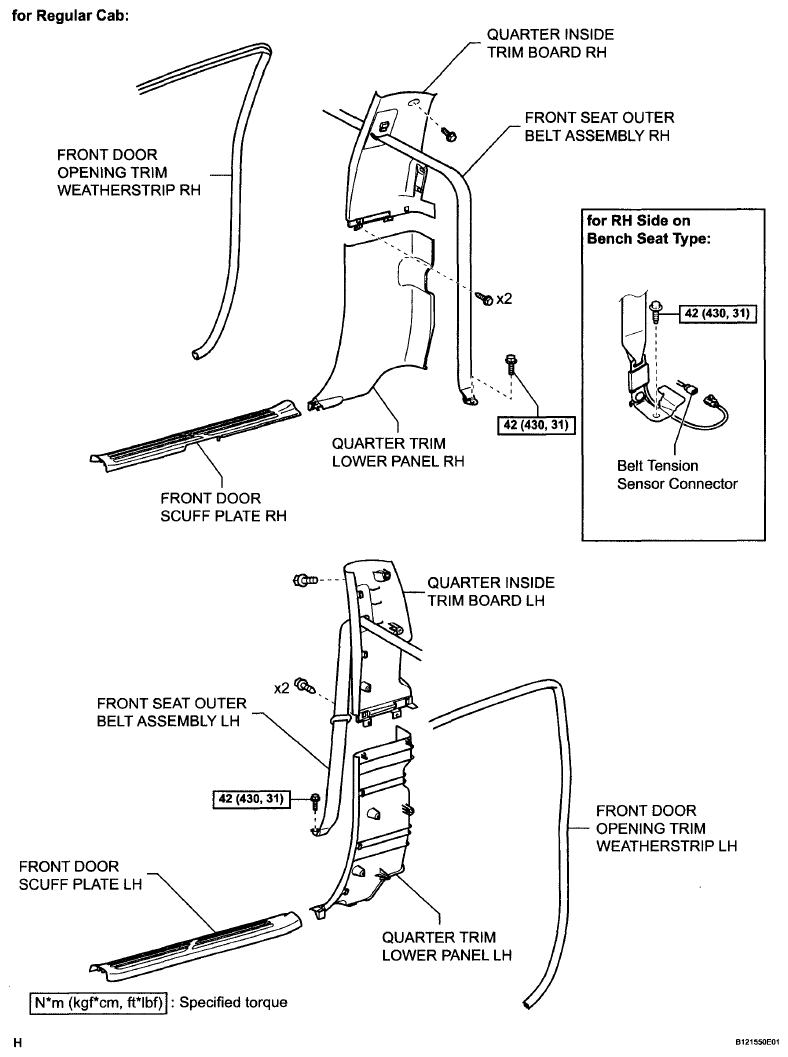

Fig 7: Back Window Glass Replacement Components With Torque Specifications (7 Of 8)

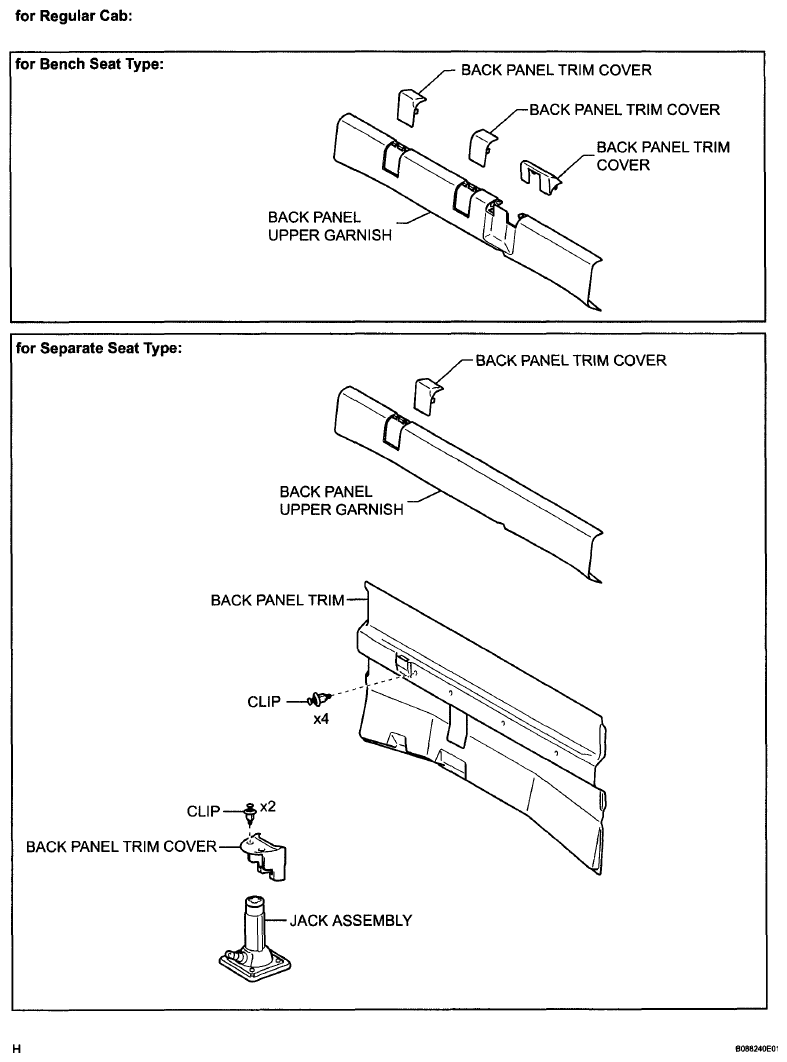

Fig 8: Back Window Glass Replacement Components With Torque Specifications (8 Of 8)
