Inspection Procedure

INSPECT FUSE (D FR P/W, IG1 NO.2, ECU-B, AM1, J/B)
1. Remove the D FR P/W and IG1 No.2 fuses from the driver side J/B.
2. Remove the ECU-B, AM1 and J/B fuses from the engine room R/B.
3. Measure the resistance.
  Standard resistance: Below 1 Ω
4. Reinstall the D FR P/W and IG1 No.2 fuses.
5. Reinstall the ECU-B, AM1 and J/B fuses.
NG: REPLACE FUSE

OK: Go to Next Step

INSPECT RELAY (P/W)

Remove the P/W relay from the driver side J/B.

Measure the resistance.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
3 - 5	10 kΩ or higher
3 - 5	Below 1 Ω (when battery voltage Is applied to terminals 1 and 2)

Reinstall the P/W relay.

NG: REPLACE RELAY

Fig 1: Identifying Relay (P/W) Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (FOR POWER SOURCE OF DRIVER SIDE J/B ASSEMBLY)

Disconnect the 1A, 1C, and 1H driver side J/B connectors.

Measure the voltage and resistance.

Standard voltage

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
1A-6 - Body ground	Constant	10 to 14 V
1C-16 (ECU-B) - Body ground	Constant	10 to 14 V
1A-4 (IG) - Body ground	Ignition switch ON	10 to 14 V

Standard resistance

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
1H-18 (GND) - Body ground	Constant	Below 1 Ω

Reconnect the driver side J/B connectors.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

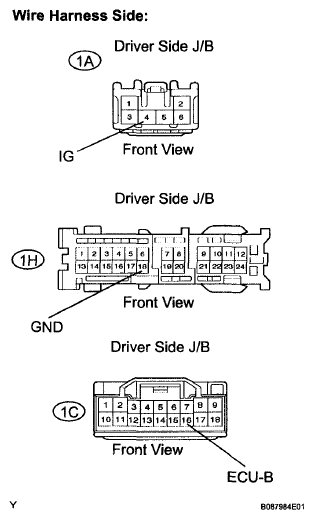

Fig 2: Identifying 1A, 1H And 1C Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

CHECK HARNESS AND CONNECTOR (POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY - BODY GROUND)

Disconnect the P9 power window regulator master switch connector.

Measure the voltage or resistance.

Standard voltage:

Double cab

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
P9-7 (B) - Body ground	Ignition switch ON	10 to 14 V

Access cab

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
P9-9 (B) - Body ground	Ignition switch ON	10 to 14 V

Fig 3: Identifying P9 Connector Terminals (Double Cab)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance:

Double cab

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
P9-1 (E) - Body ground	Constant	Below 1 Ω

Access cab

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Condition	Specified Condition
P9-1 (E) - Body ground	Constant	Below 1 Ω

Reconnect the power window regulator master switch connector.

OK: REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

Fig 4: Identifying P9 Connector Terminals (Access Cab)

NG: Go to Next Step

CHECK HARNESS AND CONNECTOR (DRIVER SIDE J/B - POWER WINDOW REGULATOR MASTER SWITCH)

Disconnect the 1H driver side J/B connectors.
Disconnect the P9 power window regulator master switch connector.

Measure the resistance.

Standard resistance (Double cab)

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
1H-1 - P9-7 (B)	Below 1 Ω

Standard resistance (Access cab)

TESTER CONNECTION SPECIFIED CONDITION

Tester Connection	Specified Condition
1H-1 - P9-9 (B)	Below 1 Ω

Reconnect the driver side J/B connector.

Fig 5: Identifying P9 And 1H Connector Terminals (Double Cab)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Reconnect the power window regulator master switch connector.

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

Fig 6: Identifying P9 And 1H Connector Terminals (Access Cab)

OK: REPLACE DRIVER SIDE JUNCTION BLOCK
