Remote Up/Down Function does not Operate: Wiring Diagram

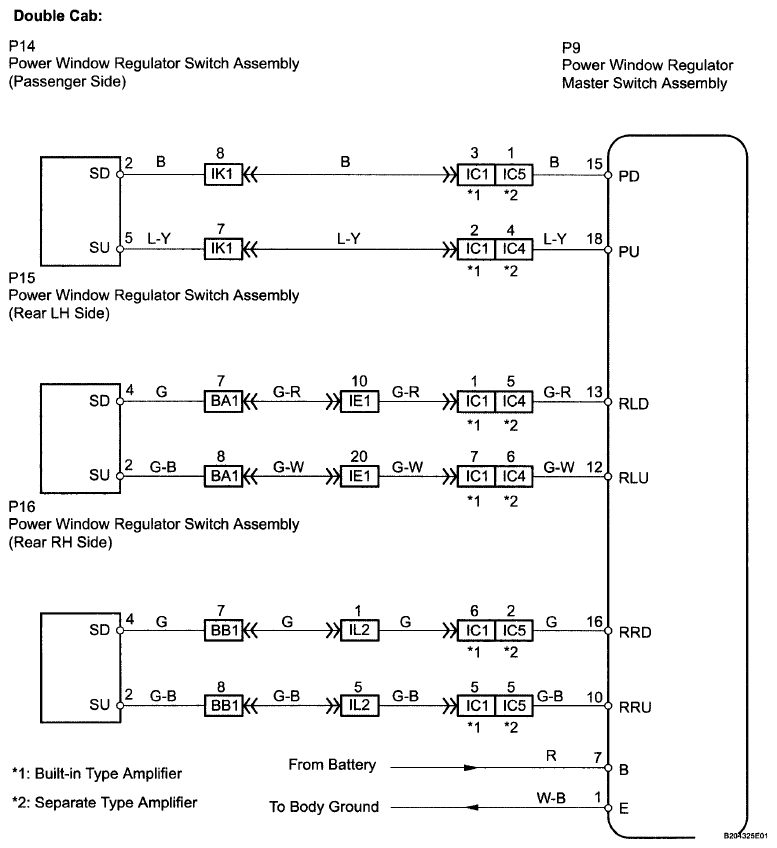

Fig 1: Remote Up/Down Function Does Not Operate - Wiring Diagram (Double Cab)
G06087583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

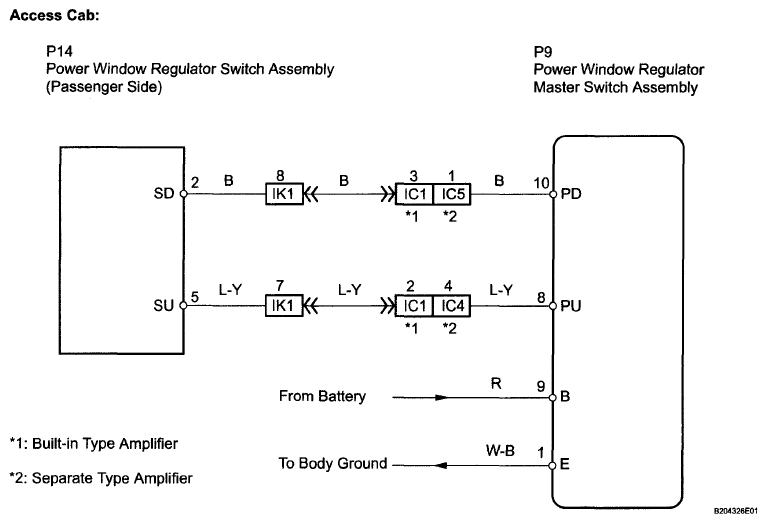

Fig 2: Remote Up/Down Function Does Not Operate - Wiring Diagram (Access Cab)
G06087584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
