EVAP System: Wiring Diagram

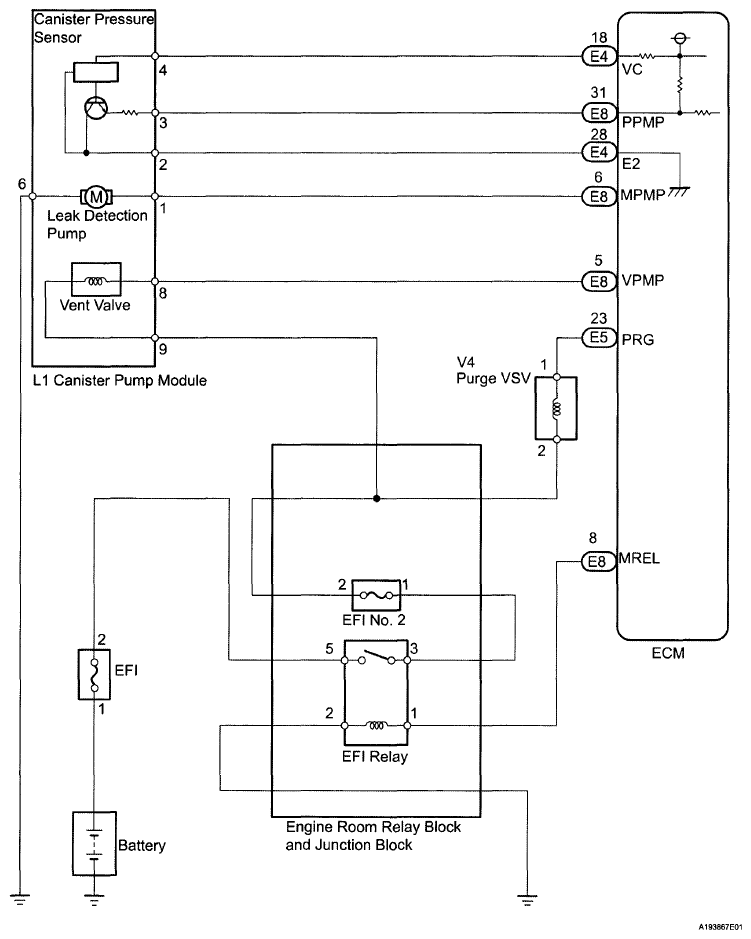

Fig 1: EVAP System - Wiring Diagram
G06080596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
