Venza 3.5 K, AWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Windshield/Window Glass
>>
Window Defogger System
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram

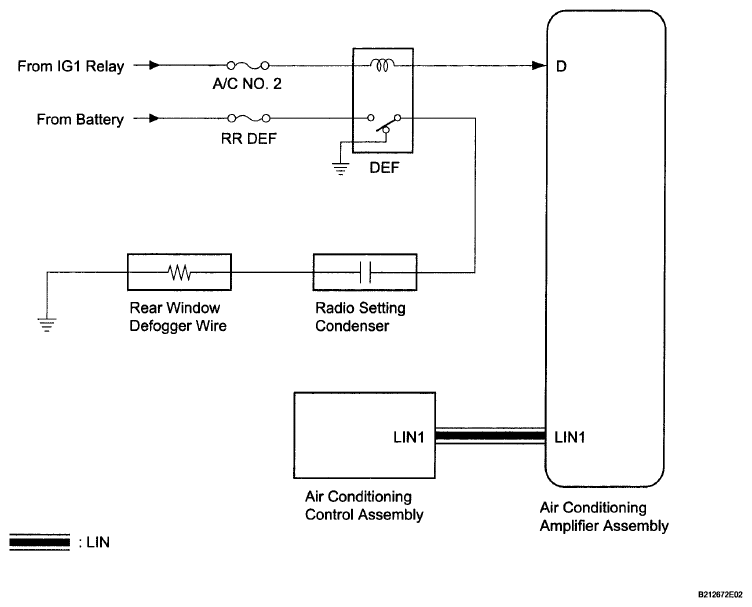

Fig 1: Window Defogger System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Communication Table
COMMUNICATION CHART
Transmitting ECU
Receiving ECU
Signal
Communication Method
Air Conditioning Control Assembly
Air Conditioning Amplifier Assembly
Rear window defogger switch signal
LIN
