Brake Actuator: Components

Fig 1: Identifying Brake Actuator Replacement Components With Torque Specification (1 Of 3)
G04832225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Brake Actuator Replacement Components With Torque Specification (2 Of 3)
G06132054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

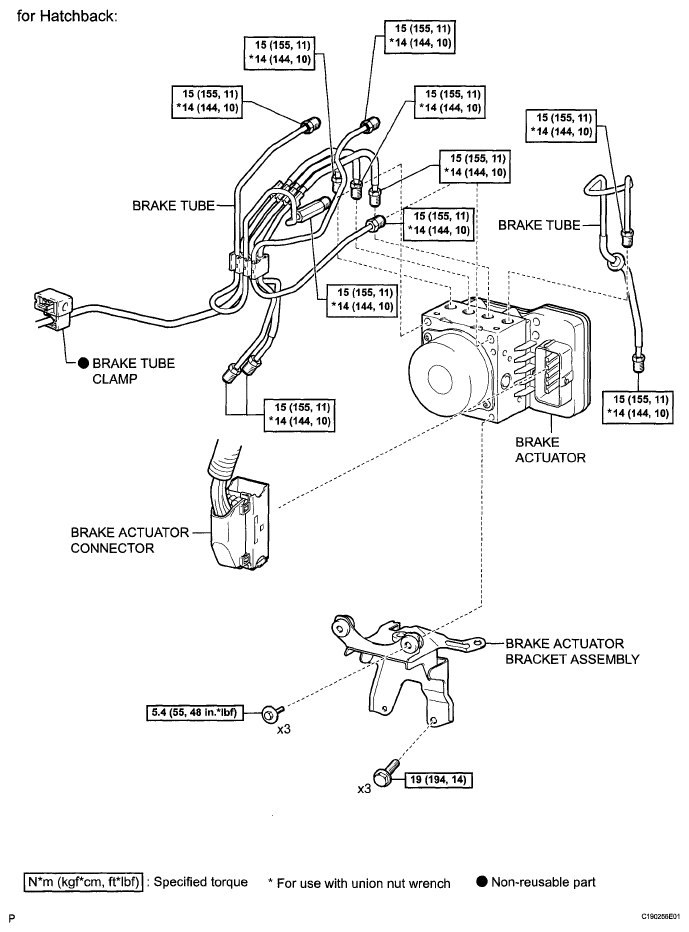

Fig 3: Identifying Brake Actuator Replacement Components With Torque Specification (3 Of 3)
G06132055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
