OEM System Circuits: Abs: Notes

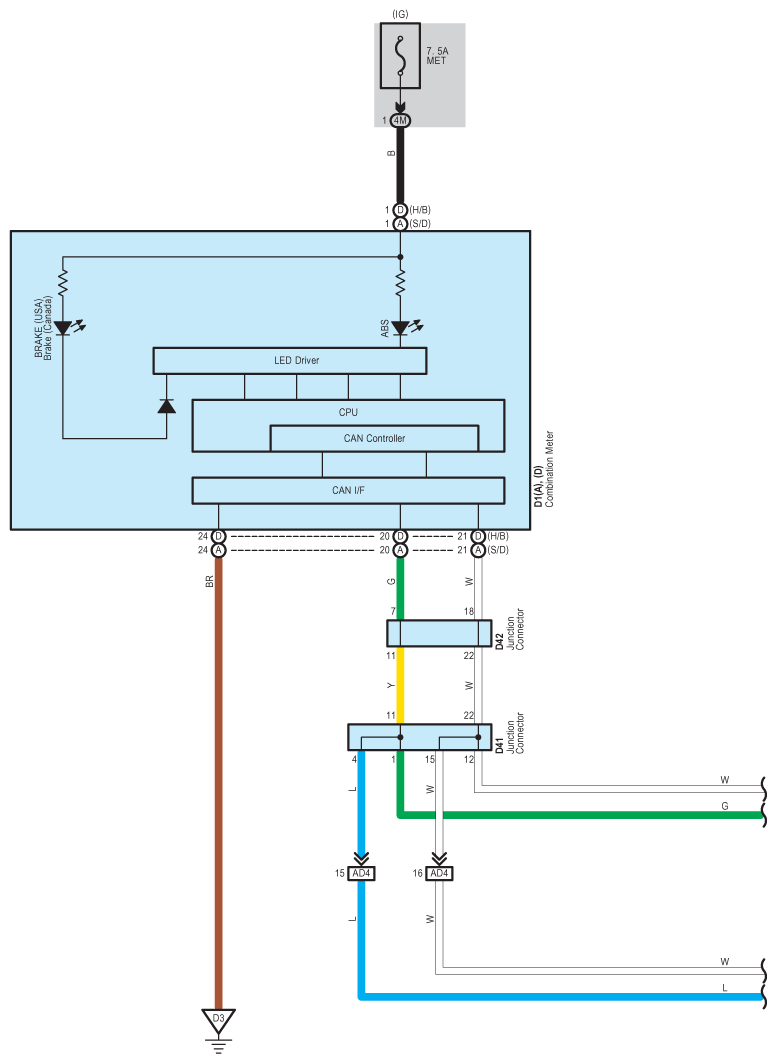

Fig 1: ABS - Circuit Diagram (1 Of 3)
G07611336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

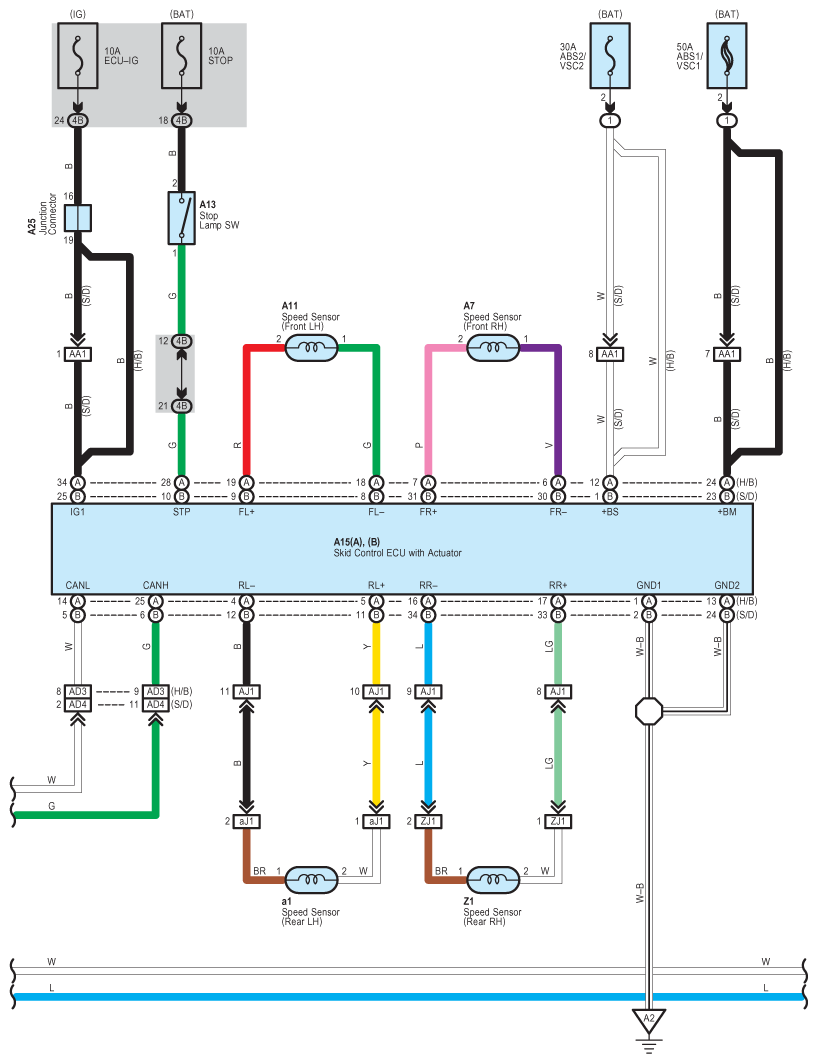

Fig 2: ABS - Circuit Diagram (2 Of 3)
G07611337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: ABS - Circuit Diagram (3 Of 3)
G07611338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
